Windows DNS Server Content Pack

The following content pack is available for use with a Graylog Illuminate license and Graylog Enterprise or Graylog Security. Contact sales to learn more about obtaining Illuminate.

Windows DNS Server is a core Windows Server role that provides domain name resolution services for internal and external network resources. This content pack enables comprehensive parsing of both Analytical and Audit DNS logs, offering deep visibility into query activity across clients, DNS resolution behaviors and metrics over time, and configuration changes. These logs are critical for detecting malicious use of DNS and maintaining infrastructure integrity.

Analytical logs, sourced from the Microsoft-Windows-DNSServer Event Tracing for Windows (ETW) provider, record every DNS query and response handled by the server. This high-volume telemetry is essential for monitoring name resolution patterns and identifying abnormal traffic such as DNS tunneling or data exfiltration. Designed for performance, ETW-based logging minimizes overhead even at high query rates.

Audit logs, captured from the Microsoft-Windows-DNS-Server/Audit channel, focus on administrative operations — changes to zones, resource records, DNSSEC, and server settings. These events are vital for detecting unauthorized modifications, maintaining an audit trail, and ensuring DNS infrastructure integrity.

Supported Version(s)

Windows Server 2016 and later

Hint: Analytic logs from enhanced DNS logging are available on Windows Server 2012 R2 with Hotfix KB2956577 as well, but the Filebeat agent version required for this pack does not support Windows Server 2012.

Requirements

Graylog 6.1.0+ with a valid Enterprise license
Windows DNS Server installed and DNS Analytic/Audit logs enabled on the system
Filebeat agent version 8.13.0 and higher running standalone
Illuminate Core: DNS Processing Add-on Pack (optional for some Spotlight widgets)

Stream Configuration

This technology pack includes one stream:

"Illuminate:Windows DNS Server Event Messages"

Hint: If this stream does not exist prior to the activation of this pack then it will be created and configured to route messages to this stream and the associated index set. There should not be any stream rules configured for this stream.

Index Set Configuration

This technology pack includes one index set definition:

"Windows DNS Server Event Messages"

Hint: If this index set is already defined, then nothing will be changed. If this index set does not exist, then it will be created with retention settings of a daily rotation and 90 days of retention. These settings can be adjusted as required after installation.

Log Collection

This content pack requires Filebeat version 8.13.0 or higher for log collection due to the constraint that DNS Server Analytical logging exclusively relies on Event Tracing for Windows (ETW). Filebeat is one of the few log delivery agents that natively supports ETW through its ETW input module.

It is important to note that Filebeat must be run standalone, not bundled with Graylog Sidecar. This is because the bundled Filebeat version is below version 8.13.0, which is the minimum required for compatibility with ETW.

DNS Server Audit logs are enabled by default, but Analytic logs are not. Refer to the Microsoft documentation on how to enable the DNS Server Analytic event log.

Hint: While NXLog Enterprise Edition is able to consume DNS Server Analytical events via ETW using its im_etw module, it is not compatible with this content pack due to differences in field conventions and log structure. Only Filebeat is officially supported.

Filebeat Standalone Configuration Example

Please refer to the official guide to installing and configuring Filebeat for Windows.

Create a Beats input in Graylog. Ensure that the option Do not add Beats type as prefix is disabled (unchecked).

See the following example Filebeat configuration:

Copy

# Needed for Graylog
fields_under_root: true

output.logstash:
    hosts: ["GRAYLOG_SERVER:5044"]

path:
    data: C:\Program Files\Filebeat\data
    logs: C:\Program Files\Filebeat\logs

tags:
- windows

filebeat.inputs:
- type: etw
    id: etw-dnsserver
    enabled: true
    provider.name: Microsoft-Windows-DNSServer
    session_name: DNSServer-Analytical  # IMPORTANT for parsing to recognize Analytical events
    trace_level: verbose
    match_any_keyword: 0x8000000000000000
    match_all_keyword: 0

- type: winlog
    id: winlog-dnsserver-audit
    enabled: true
    name: "Microsoft-Windows-DNSServer/Audit"
    ignore_older: 24h

Hint: Note that the parser for this pack requires the user-defined session_name to be DNSServer-Analytical (case-insensitive) in order to identify Analytic log events.

Edit the Filebeat config to ship to your Graylog server IP or hostname.
Ensure that DNS Server Analytic and Audit logs are enabled for the system.

What is Provided

Parsing rules to extract Windows DNS Server Analytic and Audit event logs into Graylog schema compatible fields
Field normalization and data enrichment for additional investigative context

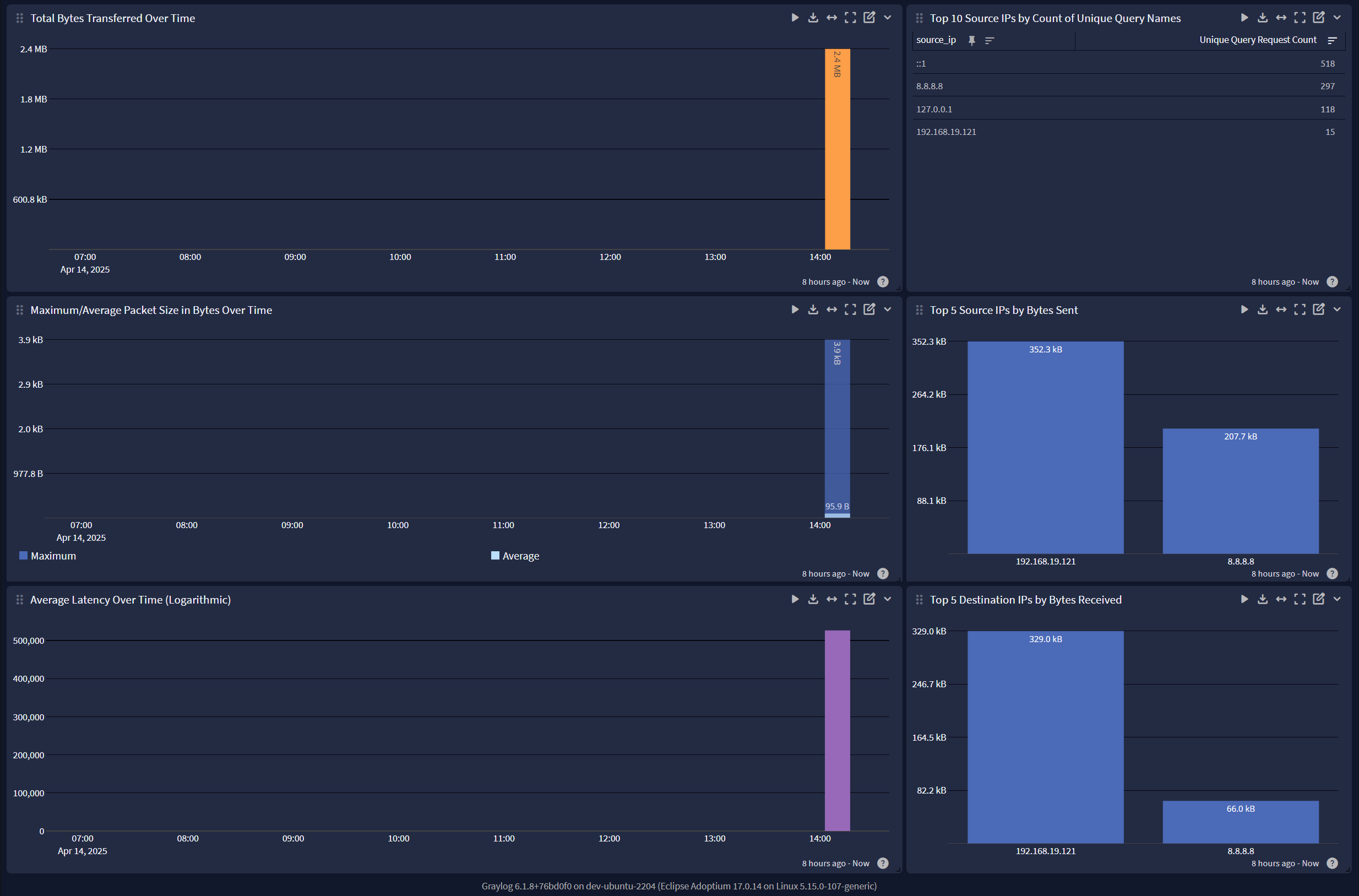

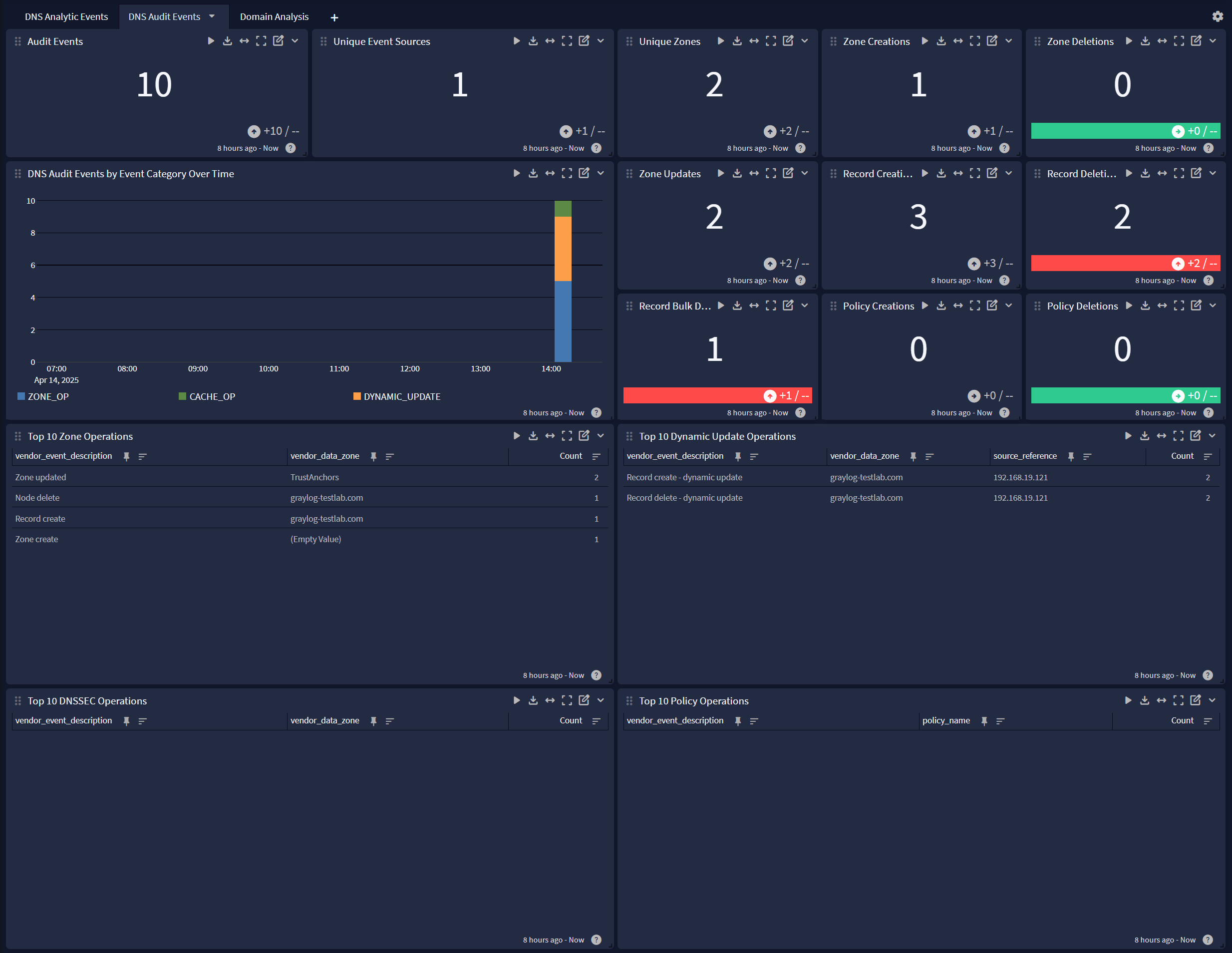

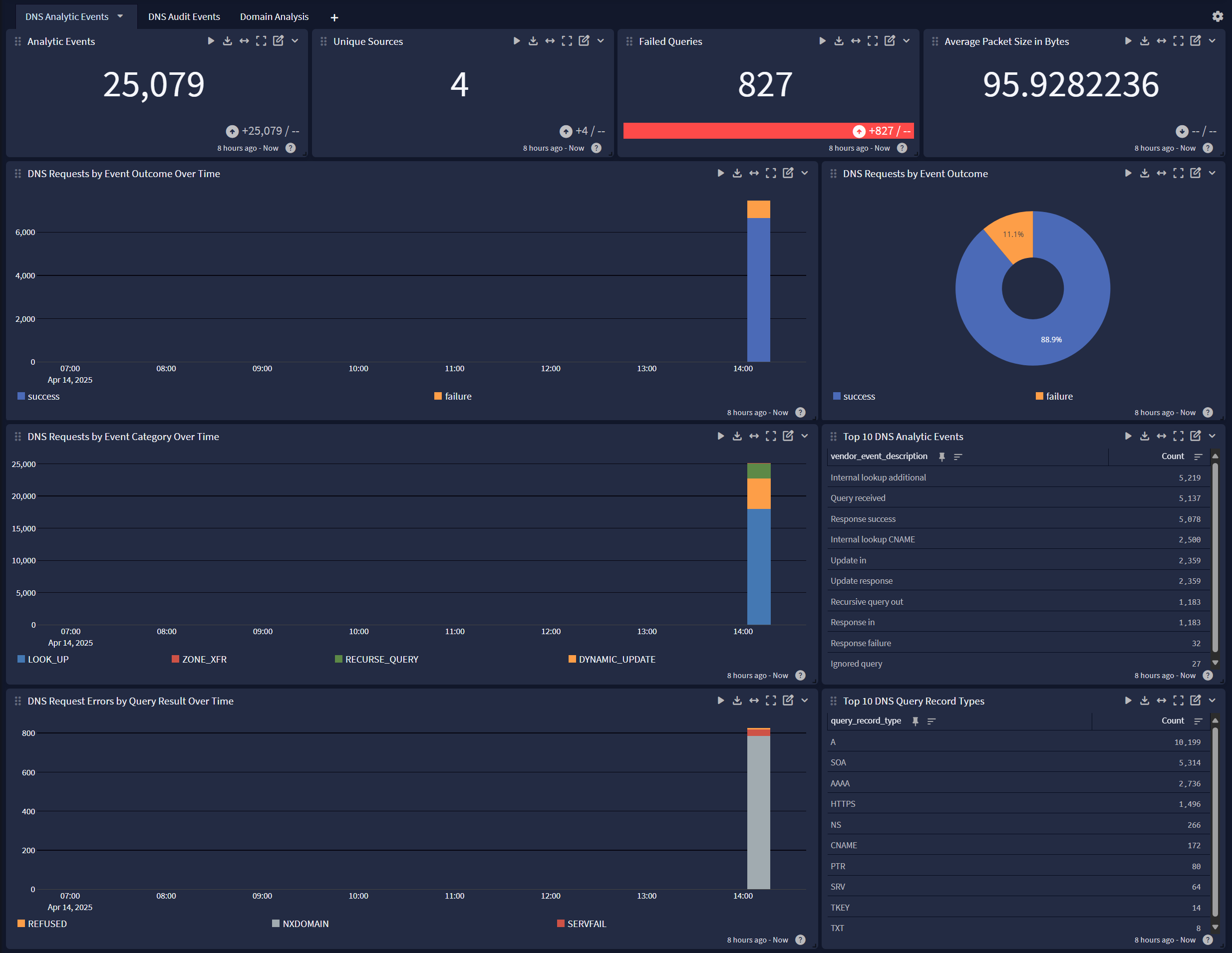

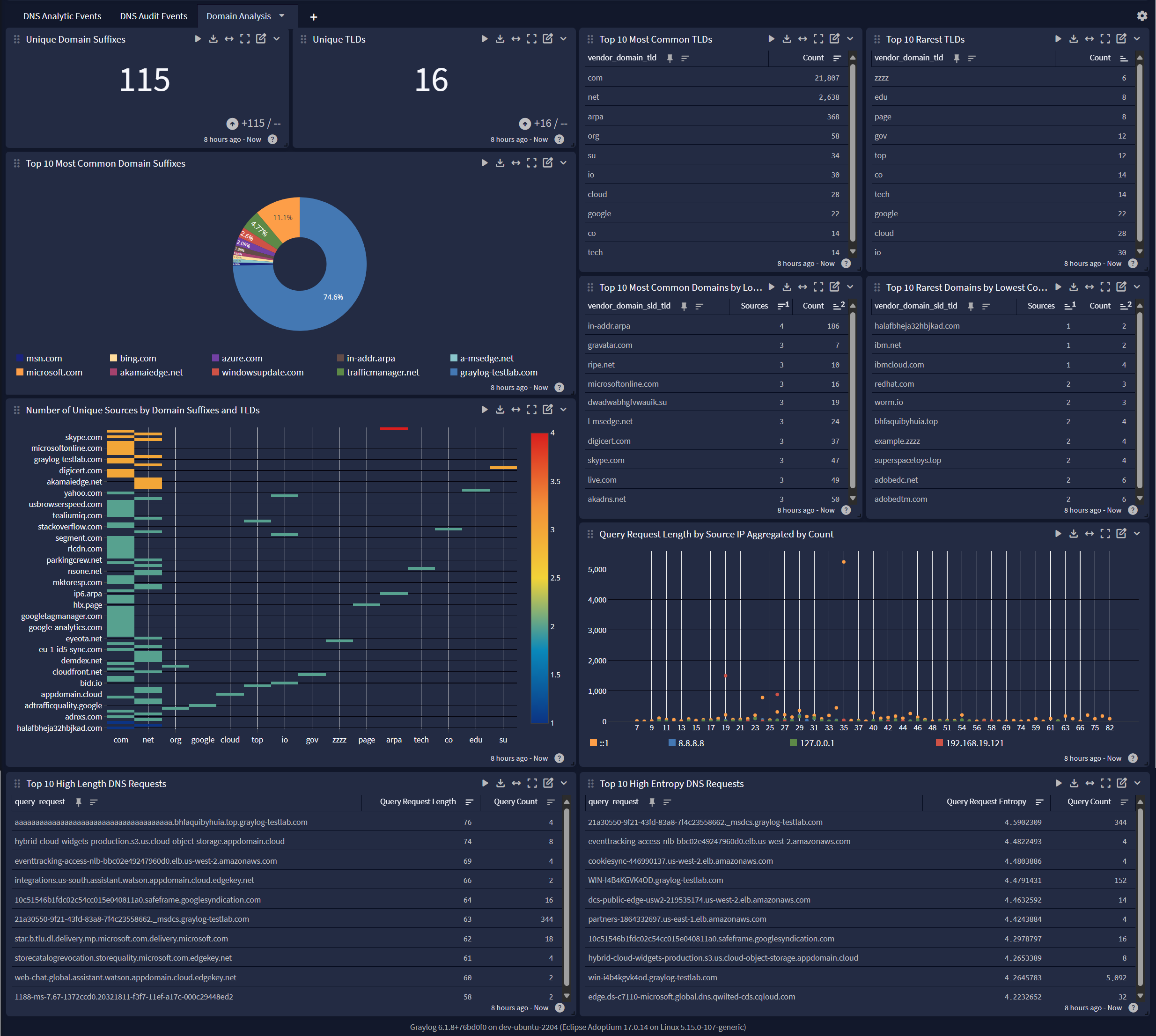

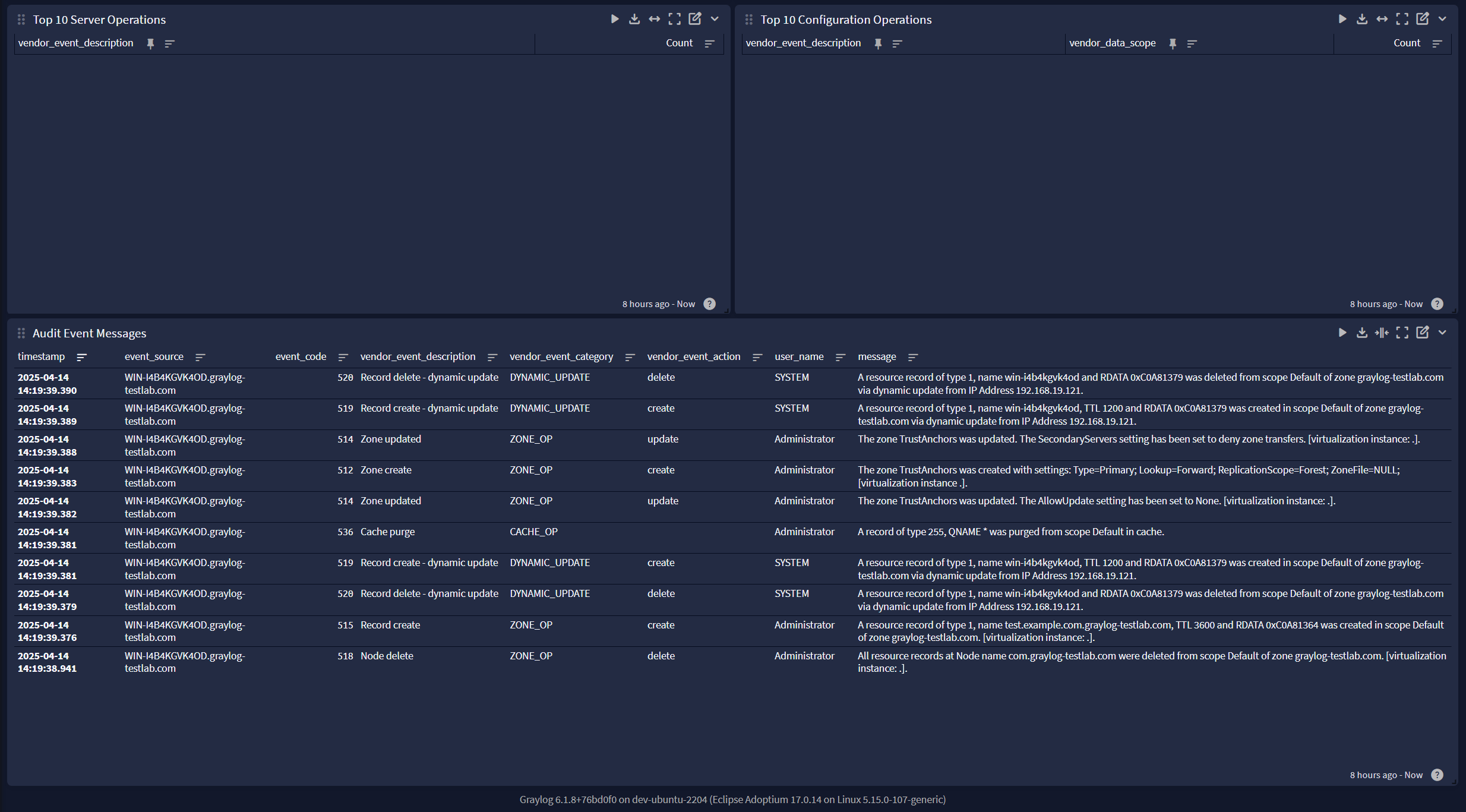

Illuminate Spotlight dashboard to support DNS transactional and administrative activity monitoring, provide useful insights into DNS patterns across the network, and highlight potential security threats

Events Processed by This Technology Pack

The Windows DNS Server content pack supports the following events. Generic processing will be provided for any Event IDs not listed.

Event IDs

Analytic Events

Event ID	Description
256	Query received
257	Response success
258	Response failure
259	Ignored query
260	Recursive query out
261	Response in
262	Recursive query timeout
263	Update in
264	Update response
265	IXFR request out
266	IXFR request in
267	IXFR response out
268	IXFR response in
269	AXFR request out
270	AXFR request in
271	AXFR response out
272	AXFR response in
273	XFR notification in
274	XFR notification out
275	XFR notify ACK in
276	XFR notify ACK out
277	Dynamic update forward
278	Dynamic update response in
279	Internal lookup CNAME
280	Internal lookup additional

Audit Events

Event ID	Description
512	Zone create
513	Zone delete
514	Zone updated
515	Record create
516	Record delete
517	RRSET delete
518	Node delete
519	Record create - dynamic update
520	Record delete - dynamic update
521	Record scavenge
522	Zone scope create
523	Zone scope delete
525	Zone sign
526	Zone unsign
527	Zone re-sign
528	Key rollover start
529	Key rollover end
530	Key retire
531	Key rollover triggered
533	Key poke rollover
534	Export DNSSEC
535	Import DNSSEC
536	Cache purge
537	Forwarder reset
540	Root hints
541	Server setting
542	Server scope create
543	Server scope delete
544	Add trust point DNSKEY
545	Add trust point DS
546	Remove trust point
547	Add trust point root
548	Restart server
549	Clear debug logs
550	Write dirty zones
551	Clear statistics
552	Start scavenging
553	Enlist directory partition
554	Abort scavenging
555	Prepare for demotion
556	Write root hints
557	Listen address
558	Active refresh trust points
559	Pause zone
560	Resume zone
561	Reload zone
562	Refresh zone
563	Expire zone
564	Update from DS
565	Write and notify
566	Force aging
567	Scavenge servers
568	Transfer primary key server
569	Add SKD
570	Modify SKD
571	Delete SKD
572	Modify SKD state
573	Add delegation
574	Create client subnet record
575	Delete client subnet record
576	Update client subnet record
577	Create server level policy
578	Create zone level policy
579	Create forwarding policy
580	Delete server level policy
581	Delete zone level policy
582	Delete forwarding policy

GIM Categorization

GIM categorization is provided for the following messages:

GIM Event Category	GIM Event Subcategory	GIM Event Type	GIM Event Type Code
name resolution	name resolution.dns request	dns query	140000
name resolution	name resolution.dns answer	dns response	140200
name resolution	name resolution.error	dns error	140300
name resolution	name resolution.default	dns message	149999

Parsed Fields

This pack parses out the following fields. Note that this list is not comprehensive.

Common

Field Name	Example Value	Field Type	Description
event_created	2025-03-08T04:35:20.293Z	date	Date/time that the event occurred or was first read by the agent
event_reporter	dnssvr01	keyword	The name of the agent that delivered the message
event_reporter_ip	192.168.51.40	keyword	IP address of the agent host
event_reporter_hostname	dnssvr01	keyword	Hostname of the agent host
event_source	dnssvr01	keyword	Hostname or IP of source system that generated the event
event_source_product	windows_dns_server	keyword	Identifier for Windows DNS Server log source
network_protocol	dns	keyword	The network protocol used

Analytic Logs

Field Name	Example Value	Field Type	Description
event_code	257	long	The Event ID representing the Windows DNS Server Analytic log message type
event_outcome	success	keyword	The outcome (success/failure) of the event action
event_uid	{0254B809-BB52-4B64-9C49-A00E452ECA56}	keyword	A globally unique identifier associated with the event, useful for tracking complete conversations
event_error_code	2	keyword	Assigned from `query_result_code` when the value is non-zero, indicating an error response
message	DNS Response success	text	A concise summary of the event
network_bytes	875	long	The size in bytes of the DNS packet data
network_transport	udp	keyword	The transport layer protocol used
policy_name	AllowedSubnet	keyword	The name of any policy applied to the DNS query
query_record_type	TXT	keyword	The DNS record type being requested (QTYPE)
query_record_type_code	16	keyword	The code of the DNS record type being requested (QTYPE code)
query_request	google.com	keyword	The name being resolved in the DNS request (QNAME)
query_response	_undefined_	keyword	(NOT IMPLEMENTED) The name resolution answer, currently undefined for all events. Windows DNS Server Analytic logs do not include the query answers as explicit fields. A functionality to extract the answer data from the raw packet data is planned for a future iteration of this pack.
query_result	NOERROR	keyword	The DNS response status (RCODE name)
query_result_code	0	keyword	The DNS response code (RCODE)
source_ip	192.168.19.121	ip	IP address of the source from which the DNS query originated
source_port	55344	long	The port from which the DNS query originated
destination_ip	8.8.8.8	ip	IP address of the destination to which the DNS query is sent or the response is received
destination_port	61893	long	The port to which the DNS query is sent or the response is received
vendor_data_additional_info	VirtualizationInstance:.	keyword	Extra metadata related to the event
vendor_data_cache_scope	Default	keyword	The cache scope applied, such as if the response was retrieved from a local cache
vendor_data_dnssec	0	keyword	Whether DNSSEC was used in the transaction
vendor_data_elapsed_time	2	long	The time taken to process the request
vendor_data_flags	33152	keyword	DNS header information represented as a bitmask
vendor_data_header_flags	["AA"]	keyword	Array of DNS header flags
vendor_data_interface_ip	127.0.0.1	keyword	The IP address of the network interface on the DNS server processing the transaction
vendor_data_forward_interface_ip	10.50.1.253		The IP address of the network interface used by the DNS server when forwarding a query to an upstream resolver
vendor_data_packet_data	0x000381800001000C0000000006676F6F67...	keyword	The raw DNS packet data in hexadecimal format
vendor_data_queries_attached	0	keyword	The number of queries attached to an event
vendor_data_xid	11660	keyword	The transaction ID
vendor_data_qxid	4	keyword	The query transaction ID
vendor_data_recursion_depth	1	keyword	The number of recursive lookups performed to resolve the DNS query
vendor_data_recursion_scope	.	keyword	The scope of recursion allowed in handling the DNS query
vendor_data_scope	Default	keyword	The DNS scope in which the query was processed
vendor_data_secure	0	keyword	Whether the transaction took place over a secure channel
vendor_data_zone	..Cache	keyword	The DNS zone involved in the event
vendor_data_zone_scope	Default	keyword	The scope of the DNS zone involved in the event
vendor_domain_sld_tld	google.com	keyword	The combination of the question name's second level and top level domains (not eTLD)
vendor_domain_sld	google	keyword	The question name's second level domain
vendor_domain_tld	com	keyword	The question name's top level domain (not eTLD)
vendor_event_category	LOOK_UP	keyword	The category of the Analytic event describing the task performed
vendor_event_category_code	1	long	The category code of the Analytic event describing the task performed
vendor_event_channel	16	keyword	Specific to Windows ETW event processing
vendor_event_description	Response success	keyword	Description of the Event ID associated with the Analytic message
vendor_event_outcome_reason	System	keyword	The reason for the DNS query outcome, often given for failed or ignored queries and timeouts
vendor_event_provider	Microsoft-Windows-DNSServer	keyword	The name of the Windows ETW provider
vendor_event_provider_guid	{eb79061a-a566-4698-9119-3ed2807060e7}	keyword	The GUID of the Windows ETW provider
vendor_event_session	DNSServer-Analytical	keyword	The name of the Windows ETW session
vendor_event_severity	information	keyword	The event severity rating derived from the source log level
vendor_input_type	etw	keyword	The input type, expected to be ETW for Windows DNS Server Analytic logs
vendor_opcode_code	0	keyword	Specific to Windows ETW event processing

Audit Logs

Field Name	Example Value	Field Type	Description
event_code	516	long	The Event ID representing the Windows DNS Server Audit log message type
event_log_name	Microsoft-Windows-DNSServer/Audit	keyword	The Windows event log channel from which the event originates
event_uid	99	keyword	The unique event record ID
message	A resource record of type 1, name ns2.example.com, TTL 1200 and RDATA 0x0A000210 was created in scope Default of zone example.com via dynamic update from IP Address 192.168.19.121.	text	The Audit event text
network_bytes	4	long	The total bytes transferred during the event
policy_name	AllowedSubnet	keyword	The name of any policy associated with the event
query_record_type	*	keyword	The DNS record type being requested (QTYPE)
query_record_type_code	255	keyword	The code of the DNS record type being requested (QTYPE code)
source_ip	192.168.19.121	ip	IP address of the source host
destination_ip	8.8.8.8	ip	IP address of the destination host
user_name	Administrator	keyword	Name of the user account associated with the event
user_id	S-1-5-21-313282886-420110098-1052476632-500	keyword	SID of the user account associated with the event
user_domain	GRAYLOG-TESTLAB	keyword	Domain of the user account associated with the event
user_type	User	keyword	The type of user account associated with the event
vendor_event_action	create	keyword	The action described in the event
vendor_event_category	ZONE_OP	keyword	The category of the Audit event describing the task performed
vendor_event_category_code	5	long	The category code of the Audit event describing the task performed
vendor_event_description	Zone updated	keyword	Description of the Event ID associated with the Audit message
vendor_event_provider	Microsoft-Windows-DNSServer	keyword	The event log source
vendor_event_provider_guid	{eb79061a-a566-4698-9119-3ed2807060e7}	keyword	The GUID of the event log source
vendor_event_severity	information	keyword	The event severity rating derived from the source log level
vendor_input_type	winlog	keyword	The input type, expected to be Winlog for Windows DNS Server Audit logs
vendor_opcode	Info	keyword	The opcode defined by the event record
vendor_data_action		keyword
vendor_data_active_key		keyword
vendor_data_base64_data		keyword
vendor_data_child_zone		keyword
vendor_data_client_subnet_list		keyword
vendor_data_client_subnet_record		keyword
vendor_data_condition		keyword
vendor_data_criteria		keyword
vendor_data_crypto_algorithm		keyword
vendor_data_current_rollover_status		keyword
vendor_data_current_state		keyword
vendor_data_denial_of_existence		keyword
vendor_data_digest		keyword
vendor_data_digest_type		keyword
vendor_data_distribute_trust_anchor		keyword
vendor_data_key_record_set_ttl		keyword
vendor_data_key_signature_validity_period		keyword
vendor_data_ds_record_generation_algorithm		keyword
vendor_data_ds_record_set_ttl		keyword
vendor_data_ds_signature_validity_period		keyword
vendor_data_enable_rfc_5011_key_rollover		keyword
vendor_data_errors_per_second		keyword
vendor_data_event_string		keyword
vendor_data_file_path		keyword
vendor_data_forwarders		keyword
vendor_data_friendly_name		keyword
vendor_data_guid		keyword
vendor_data_initial_rollover_offset		keyword
vendor_data_ipv4_prefix_length		keyword
vendor_data_ipv6_prefix_length		keyword
vendor_data_is_enabled		keyword
vendor_data_is_key_master_server		keyword
vendor_data_key_id		keyword
vendor_data_key_length		keyword
vendor_data_key_master_server		keyword
vendor_data_key_or_zone		keyword
vendor_data_ksk_or_zsk		keyword
vendor_data_key_protocol		keyword
vendor_data_key_storage_provider		keyword
vendor_data_key_tag		keyword
vendor_data_key_type		keyword
vendor_data_last_rollover_time		keyword
vendor_data_leak_rate		keyword
vendor_data_listen_addresses		keyword
vendor_data_lookup		keyword
vendor_data_master_server		keyword
vendor_data_mode		keyword
vendor_data_name		keyword
vendor_data_NAME		keyword
vendor_data_name_server		keyword
vendor_data_new_friendly_name		keyword
vendor_data_new_property_values		keyword
vendor_data_new_scope		keyword
vendor_data_new_value		keyword
vendor_data_next_key		keyword
vendor_data_next_rollover_action		keyword
vendor_data_next_rollover_time		keyword
vendor_data_node_name		keyword
vendor_data_nsec3_hash_algorithm		keyword
vendor_data_nsec3_iterations		keyword
vendor_data_nsec3_opt_out		keyword
vendor_data_nsec3_random_salt_length		keyword
vendor_data_nsec3_user_salt		keyword
vendor_data_old_friendly_name		keyword
vendor_data_old_property_values		keyword
vendor_data_old_scope		keyword
vendor_data_parent_has_secure_delegation		keyword
vendor_data_processing_order		keyword
vendor_data_propagation_time		keyword
vendor_data_property_key		keyword
vendor_data_qname		keyword	Deliberately not mapped to query_request to avoid GIM "dns query" categorization which isn't always applicable in the Audit event context
vendor_data_rdata		keyword
vendor_data_recursion_scope		keyword
vendor_data_replication_scope		keyword
vendor_data_response_per_second		keyword
vendor_data_rollover_period		keyword
vendor_data_rollover_type		keyword
vendor_data_rrl_exception_list		keyword
vendor_data_scavenge_servers		keyword
vendor_data_scope		keyword
vendor_data_scopes		keyword
vendor_data_scope_weight		keyword
vendor_data_scope_weight_new		keyword
vendor_data_scope_weight_old		keyword
vendor_data_secure_delegation_polling_period		keyword
vendor_data_seized_or_transfered		keyword
vendor_data_server_name		keyword
vendor_data_setting		keyword
vendor_data_signature_inception_offset		keyword
vendor_data_standby_key		keyword
vendor_data_store_keys_in_ad		keyword
vendor_data_subtree_aging		keyword
vendor_data_tc_rate		keyword
vendor_data_total_responses_in_window		keyword
vendor_data_ttl		long
vendor_data_type		keyword
vendor_data_virtualization_id		keyword
vendor_data_window_size		keyword
vendor_data_with_new_keys		keyword
vendor_data_with_without		keyword
vendor_data_zone		keyword
vendor_data_zone_file		keyword
vendor_data_zone_scope		keyword
vendor_data_zone_signature_validity_period		keyword
vendor_data_zone_name		keyword
