Microsoft Defender Antivirus Content Pack

The following content pack is available for use with a Graylog Illuminate license and Graylog Enterprise or Graylog Security. Contact sales to learn more about obtaining Illuminate.

Microsoft Defender Antivirus is an anti-malware client service built into supported Windows desktop and server platforms. This technology pack parses, normalizes, and enriches Defender Antivirus events from the Windows Defender Operational log to support detection, response, and operational visibility.

Supported Version(s)

  • Windows 10 and 11 (client)

  • Windows Server 2016 and later

Requirements

  • Windows host with Microsoft Defender Antivirus enabled

  • Graylog 6.0+ with a valid Enterprise license

Stream Configuration

This technology pack includes 1 stream:

  • "Illuminate:Windows Event Log Messages"

Hint: If this stream does not exist prior to the activation of this pack then it is created and configured to route messages to this stream and the associated index set. There should not be any stream rules configured for this stream.

Index Set Configuration

This technology pack includes 1 index set definition:

  • "Windows Event Log Messages"

Hint: If this index set is already defined, then nothing is changed. If this index set does not exist, then it is created with retention settings of a daily rotation and 90 days of retention. These settings can be adjusted as required after installation.

Log Collection

Microsoft Defender Antivirus events are collected from the Microsoft-Windows-Windows Defender/Operational channel of the Windows Event Log. The pack identifies messages delivered through Winlogbeat or NXLog and routes them into the Windows Event Log processing pipeline.

  • Winlogbeat (Graylog Sidecar)

  • NXLog

Log Format Examples

Malware Detection (Event 1116)

{"_winlogbeat_event_created":"2021-09-11T02:06:04.307Z","_winlogbeat_winlog_opcode":"Info","_winlogbeat_agent_id":"897a9958-4efc-4d8d-b5d6-e6649cdd709d","_winlogbeat_ecs_version":"1.5.0","_winlogbeat_event_code":1116,"_winlogbeat_tags":["windows"],"_winlogbeat_winlog_user_identifier":"S-1-5-18","_winlogbeat_winlog_user_type":"User","_winlogbeat_winlog_event_data_State":"1","_winlogbeat_winlog_activity_id":"{F47D9D6A-EB84-4FB5-B4AD-E86083737A24}","_winlogbeat_@timestamp":"2021-09-11T02:06:02.560Z","_winlogbeat_agent_version":"7.9.0","_winlogbeat_agent_ephemeral_id":"bb12ae77-ca9b-446f-a6ea-a8ac5a67e4b7","_winlogbeat_@metadata_version":"7.9.0","_winlogbeat_winlog_record_id":16681,"_winlogbeat_agent_hostname":"JUMPBOX","_winlogbeat_log_level":"warning","_winlogbeat_@metadata_type":"_doc","_winlogbeat_@metadata_beat":"winlogbeat","_winlogbeat_event_provider":"Microsoft-Windows-Windows Defender","_beats_type":"winlogbeat","_winlogbeat_winlog_user_domain":"NT AUTHORITY","_winlogbeat_agent_name":"JUMPBOX","_winlogbeat_winlog_event_id":1116,"_winlogbeat_winlog_event_data_Path":"file:_C:\\Users\\Administrator\\Downloads\\26de80e3bbbe1f053da4131ca7a405644b7443356ec97d48517f1ab86d5f1ca5","_winlogbeat_host_name":"JUMPBOX","_winlogbeat_winlog_channel":"Microsoft-Windows-Windows Defender/Operational","_winlogbeat_winlog_user_name":"SYSTEM","_winlogbeat_winlog_computer_name":"JUMPBOX","_winlogbeat_event_kind":"event","_winlogbeat_collector_node_id":"JUMPBOX","_winlogbeat_winlog_event_data_FWLink":"https://go.microsoft.com/fwlink/?linkid=37020&name=TrojanDownloader:O97M/Donoff!rfn&threatid=2147709062&enterprise=0","_winlogbeat_winlog_process_thread_id":4108,"_winlogbeat_winlog_api":"wineventlog","message":"Windows Defender has detected malware or other potentially unwanted software.\n For more information please see the following:\nhttps://go.microsoft.com/fwlink/?linkid=37020&name=TrojanDownloader:O97M/Donoff!rfn&threatid=2147709062&enterprise=0\n \tName: TrojanDownloader:O97M/Donoff!rfn\n \tID: 2147709062\n \tSeverity: Severe\n \tCategory: Trojan Downloader\n \tPath: file:_C:\\Users\\Administrator\\Downloads\\26de80e3bbbe1f053da4131ca7a405644b7443356ec97d48517f1ab86d5f1ca5\n \tDetection Origin: Local machine\n \tDetection Type: Concrete\n \tDetection Source: User\n \tUser: JUMPBOX\\Klondike57Capsule\n \tProcess Name: Unknown\n \tSecurity intelligence Version: AV: 1.349.510.0, AS: 1.349.510.0, NIS: 0.0.0.0\n \tEngine Version: AM: 1.1.18500.10, NIS: 0.0.0.0","_winlogbeat_winlog_provider_guid":"{11CD958A-C507-4EF3-B3F2-5FD9DFBD2C78}","_winlogbeat_agent_type":"winlogbeat","_winlogbeat_winlog_provider_name":"Microsoft-Windows-Windows Defender","_winlogbeat_winlog_process_pid":1776,"host":"ip-172-31-26-190","level":6,"version":"1.1","_replayed_log":"true"}

Agent Status (Event 1150)

{"_winlogbeat_log_level":"information","_winlogbeat_@metadata_type":"_doc","_winlogbeat_event_created":"2021-09-11T14:25:27.313Z","_winlogbeat_agent_id":"56231ac0-2bd0-40e3-860f-04595b12f20e","_winlogbeat_winlog_opcode":"Info","_winlogbeat_@metadata_beat":"winlogbeat","_winlogbeat_ecs_version":"1.5.0","_winlogbeat_event_code":1150,"_winlogbeat_tags":["windows"],"_winlogbeat_event_provider":"Microsoft-Windows-Windows Defender","_beats_type":"winlogbeat","_winlogbeat_winlog_user_domain":"NT AUTHORITY","_winlogbeat_winlog_user_identifier":"S-1-5-18","_winlogbeat_agent_name":"GRAYLOGMEMBER1","_winlogbeat_winlog_event_id":1150,"_winlogbeat_winlog_user_type":"User","_winlogbeat_host_name":"GRAYLOGMEMBER1.grayloglab.local","_winlogbeat_winlog_user_name":"SYSTEM","_winlogbeat_winlog_channel":"Microsoft-Windows-Windows Defender/Operational","_winlogbeat_winlog_computer_name":"GRAYLOGMEMBER1.grayloglab.local","_winlogbeat_event_kind":"event","_winlogbeat_collector_node_id":"GRAYLOGMEMBER1","_winlogbeat_winlog_process_thread_id":1500,"_winlogbeat_winlog_api":"wineventlog","message":"Endpoint Protection client is up and running in a healthy state.\n \tPlatform version: 4.18.2108.7\n \tEngine version: 1.1.18500.10\n \tSecurity intelligence version: 1.349.518.0","_winlogbeat_@timestamp":"2021-09-11T14:25:25.906Z","_winlogbeat_agent_version":"7.9.0","_winlogbeat_winlog_provider_guid":"{11CD958A-C507-4EF3-B3F2-5FD9DFBD2C78}","_winlogbeat_agent_type":"winlogbeat","_winlogbeat_winlog_provider_name":"Microsoft-Windows-Windows Defender","_winlogbeat_agent_ephemeral_id":"471edb61-c9f5-4710-8af1-db6f63b0a47d","_winlogbeat_@metadata_version":"7.9.0","_winlogbeat_winlog_record_id":17349,"_winlogbeat_agent_hostname":"GRAYLOGMEMBER1","_winlogbeat_winlog_process_pid":2212,"host":"ip-172-31-26-190","level":6,"version":"1.1","_replayed_log":"true"}

What is Provided

  • Parsing, normalization, and enrichment of Defender Antivirus events.

  • Severity and file path normalization.

  • GIM categorization and enforcement fields.

  • A Spotlight dashboard.

Events Processed by This Technology Pack

The pack processes the following Microsoft Defender Antivirus event groups. Events outside these groups receive generic processing.

  • Malware Detection and Response (1006-1008, 1015, 1116-1119)

  • Scan and Quarantine Activity (1000-1014)

  • Engine, Signature, and Platform Updates (2000-2014)

  • Agent Status and Configuration (1150, 5000-5012)

GIM Categorization

GIM categorization is provided for the following Microsoft Defender Antivirus events.

Event Code Event Name GIM Category GIM Subcategory GIM Event Type Code
1000 Antimalware scan started agent agent.activity 280000
1001 Antimalware scan finished agent agent.activity 280000
1002 Antimalware scan stopped before completion agent agent.activity 280000
1003 Antimalware scan paused agent agent.activity 280000
1004 Antimalware scan resumed agent agent.activity 280000
1005 Antimalware scan failed agent agent.activity 280000
1006 Antimalware engine found malware or other potentially unwanted software detection detection.host_detection 301000
1007 Antimalware platform performed an action against malware detection detection.host_detection 301000
1008 Antimalware platform action against malware failed detection detection.host_detection 301000
1009 Antimalware platform restored an item from quarantine agent agent.activity 280000
1010 Antimalware platform failed to restore an item from quarantine agent agent.activity 280000
1011 Antimalware platform deleted an item from quarantine agent agent.activity 280000
1012 Antimalware platform failed to delete an item from quarantine agent agent.activity 280000
1013 Antimalware platform deleted history of malware and other potentially unwanted software agent agent.activity 280000
1014 Antimalware platform failed to delete history of malware and other potentially unwanted software agent agent.activity 280000
1015 Antimalware platform detected suspicious behavior detection detection.host_detection 301000
1116 Antimalware platform detected malware or other potentially unwanted software detection detection.host_detection 301000
1117 Antimalware platform performed an action to protect the system detection detection.host_detection 301000
1118 Antimalware platform action to protect the system failed detection detection.host_detection 301000
1119 Antimalware platform encountered a critical error detection detection.host_detection 301000
1150 Endpoint Protection client is healthy agent agent.status 280200
2000 Antimalware definitions updated agent agent.update 280100
2001 Antimalware definitions update failed agent agent.update 280100
2002 Antimalware engine updated agent agent.update 280100
2003 Antimalware engine update failed agent agent.update 280100
2004 Antimalware reverted to last known good signatures agent agent.update 280100
2005 Antimalware definitions update failed to load agent agent.update 280100
2010 Antimalware loaded dynamic signatures agent agent.update 280100
2011 Antimalware discarded a dynamic signature agent agent.update 280100
2014 Antimalware platform updated agent agent.update 280100
5000 Real-time protection scanning enabled agent agent.status 280200
5001 Real-time protection scanning disabled agent agent.status 280200
5004 Real-time protection configuration changed agent agent.status 280200
5007 Antimalware platform configuration changed agent agent.status 280200
5010 Scanning for spyware and other potentially unwanted software disabled agent agent.status 280200
5012 Scanning for viruses disabled agent agent.status 280200

Parsed Fields

The following fields are parsed and normalized from Microsoft Defender Antivirus events.

Field Name Description
event_code Windows event ID
event_source_product Set to microsoft_defender
event_outcome Success or failure based on error code
event_action Normalized action (scan_start, scan_end, blocked, allowed, quarantine, remove, etc.)
host_hostname Hostname of the reporting system
vendor_event_description Event description text
alert_signature Malware/threat name or ASR rule ID
alert_signature_id Threat definition ID
alert_severity Normalized severity (low, medium, high, critical)
alert_severity_level Numeric severity level (2-5)
alert_category Threat category (virus, trojan, etc.) or attack surface reduction
alert_response_level Response severity level (0=allow, 1=quarantine/block, 2=remove/clean)
file_path Path of detected file
file_name File name (derived from file_path)
process_path Process associated with the event
process_name Process executable name
user_name User account associated with the event
user_domain Domain of the user account
vendor_alert_severity Original Microsoft severity text (Low, Moderate, High, Severe)
vendor_alert_category Original Microsoft threat category
vendor_alert_object_type Object type (file, containerfile, driver, etc.)
vendor_file_path Original complex file path with container information
vendor_detection_origin Detection origin (Local machine, Network, etc.)
vendor_detection_type Detection type (Concrete, Heuristic, etc.)
vendor_detection_source Detection source (Real-Time Protection, IOAV, etc.)
vendor_scan_id Scan identifier
vendor_scan_type Scan type (Antimalware, Quick, Full, Custom)
vendor_scan_parameters Scan parameters
vendor_scan_resources Scanned resource paths
vendor_asr_rule_id Attack Surface Reduction rule GUID
vendor_platform_version Defender platform version
vendor_engine_version Defender engine version
vendor_intelligence_version Security intelligence version
service_name Set to Microsoft Defender Antivirus for service start/stop events

Microsoft Defender Antivirus Spotlight

This spotlight offers a dashboard with 2 tabs:

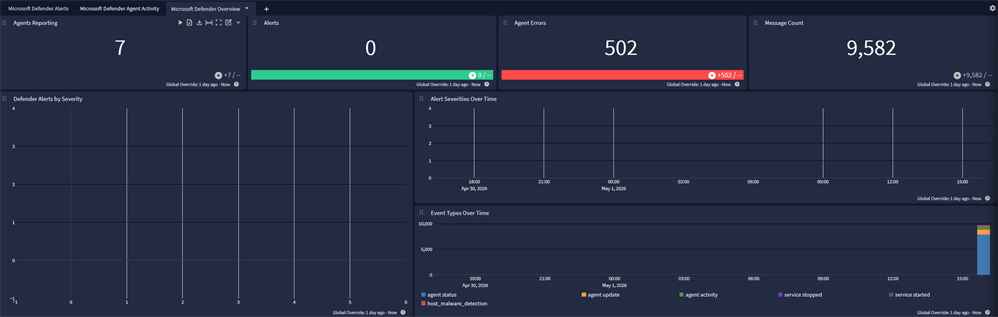

Overview

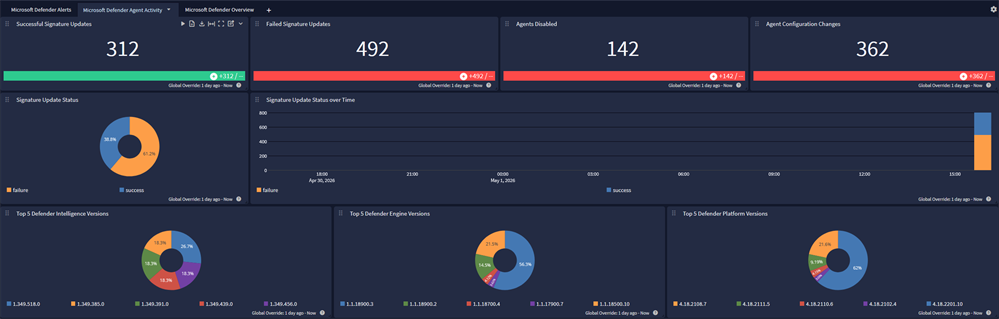

Agent Activity
