Fortinet FortiGate Content Pack

The following content pack is available for use with a Graylog Illuminate license and Graylog Enterprise or Graylog Security. Contact sales to learn more about obtaining Illuminate.

Fortinet's FortiGate is a next-generation firewall that covers both traditional and wireless traffic. The hardware-based firewall can function as an IPS and include SSL inspection and web filtering. This technology pack will process Fortinet FortiGate event log messages, providing normalization and enrichment of common events of interest.

Supported Versions

  • Fortinet FortiGate running FortiOS Version 7.0 or later

Requirements

  • Graylog Server with a valid Enterprise license, running Graylog version 4.2.5 or later

  • Configure Fortinet FortiGate to transmit Syslog to your Graylog server Syslog input

Stream Configuration

This technology pack includes 1 stream:

  • "Illuminate:Fortigate Messages"

Hint: If this stream does not exist prior to the activation of this pack then it will be created and configured to route messages to this stream and the associated index set. There should not be any stream rules configured for this stream.

Index Set Configuration

This technology pack includes 1 index set definition:

  • "Fortinet Event Log Messages"

Hint: If this index set is already defined, then nothing will be changed. If this index set does not exist, then it will be created with retention settings of a daily rotation and 90 days of retention. These settings can be adjusted as required after installation.

Log Collection

Configure your Fortinet FortiGate device(s) following the instructions in the Graylog Syslog Inputs guide using TCP as the transport and format BSD.

Log Format Example

date=2021-06-22 time=14:32:46 devname="ABCD-EFG-HIK-LMN-202-87-35-206" devid="FGA20E5Q16027714" logid="0000000013" type="traffic" subtype="forward" level="notice" vd="root" eventtime=1624352568074022779 tz="+0530" srcip=x.x.x.x srcport=50198 srcintf="wan1" srcintfrole="wan" dstip=2.2.2.2 dstport=4510 dstintf="wan2" dstintfrole="wan" sessionid=2912907682 proto=6 action="close" policyid=32 policytype="policy" poluuid="5b3cd3ef-0fd0-51e7-1222-9c9e72bdfbba" service="4510" dstcountry="India" srccountry="India" trandisp="dnat" tranip=1.1.1.1 tranport=4510 duration=62 sentbyte=2049 rcvdbyte=2703 sentpkt=12 rcvdpkt=11 appcat="unscanned"

What is Provided

  • Rules to parse, normalize, and enrich Fortinet FortiGate Content Pack messages

  • Traffic event processing (forward, local, multicast, SSL) with network connection categorization and event_action normalization

  • UTM security event processing: IPS, application control, virus, web filter, anomaly detection, DLP, DNS filtering, email filtering, WAF, SSH inspection, and file filtering

  • VPN event processing (SSL-VPN and IPsec) with logon/logoff categorization for tunnel-up and tunnel-down events

  • User authentication event processing (RADIUS, LDAP, FSSO) with success/failure outcome mapping

  • System administration login event processing

  • DHCP event processing with specific logid-based categorization (request, offer, acknowledgement)

  • Network direction normalization via lookup table

  • Alert severity mapping from FortiGate severity to GIM severity levels

  • Graylog Information Model (GIM) message categorization with enforcement fields

  • A Fortinet FortiGate Spotlight content pack

GIM Categorization

GIM categorization is provided for the following messages:

fortigate_subtype gim_event_type_code gim_event_category gim_event_class gim_event_subcategory gim_event_type
forward 120000 network network.network connection network connection
multicast 120000 network network.network connection network connection
local 120000 network network.network connection network connection
ssl 120000 network network.network connection network connection
voip 120000 network network.network connection network connection
icap 120000 network network.network connection network connection
cifs 120000 network network.network connection network connection
sniffer 129999 network network.default network message
webfilter 180200 http protocol http.communication http communication
virus 301000 detection detection.host_detection host_malware_detection
anomaly 300001 detection detection.network_detection network_detection
ips 300001 detection detection.network_detection network_detection
signature 300001 detection detection.network_detection network_detection
app-ctrl 300001 detection detection.network_detection network_detection
dlp 300002 detection detection.network_detection network_dlp_detection
dns (query) 140000 name resolution protocol name resolution.dns request dns query
dns (response) 140200 name resolution protocol name resolution.dns answer dns response
dns (default) 149999 name resolution protocol name resolution.default dns message
emailfilter 139999 messaging messaging.default message
spamfilter 139999 messaging messaging.default message
waf 300001 detection detection.network_detection network_detection
ssh 300001 detection detection.network_detection network_detection
file-filter 300001 detection detection.network_detection network_detection
vpn (tunnel-up) 100000 + 100500 authentication authentication.logon logon + credential validation
vpn (tunnel-down) 102500 authentication authentication.logoff logoff
user (success) 100000 + 100500 authentication authentication.logon logon + credential validation
user (failure) 100000 authentication authentication.logon logon
system (login) 100000 authentication authentication.logon logon
wireless 129999 network network.default network message
0100026001 290300 dhcp protocol dhcp.acknowledgement dhcp acknowledgement
0104043666 290100 dhcp protocol dhcp.offer dhcp offer
0104043664 290000 dhcp protocol dhcp.request dhcp request

Message Fields Included in This Pack

Parsed Fields

This pack will apply normalization to common fields that are present in all Fortinet FortiGate event logs.

Fortigate Source Property Normalized Field Name
action vendor_action
addr vendor_address
agent http_user_agent
ap vendor_ap
app application_name
appcat vendor_application_category
appid vendor_application_id
applist vendor_application_list
apprisk vendor_threat_suspected
attachment vendor_attachment
attack vendor_alert_category
attackid vendor_attackid
cfgattr vendor_configuration_attribute
cfgobj vendor_configuration_setting
cfgpath vendor_configuration_path
cfgtid vendor_configuration_id
channel wifi_channel
count vendor_count
countapp vendor_number_of_associated_app_ctrl_logs
countav vendor_number_of_associated_av_logs
craction vendor_threat_weight_action
crlevel vendor_threat_weight_level
crscore vendor_threat_weight_score
cve cve_number
date vendor_date
devid event_observer_id
devname vendor_devname
devtype vendor_source_device_type
direction vendor_direction
dst_host destination_host
dstcountry vendor_destination_country
dstdevtype vendor_destination_device_type
dstepid vendor_destination_endpoint_id
dsthwvendor vendor_destination_hw_interface
dstintfrole vendor_destination_interface_role
dstip destination_ip
dstmac destination_mac
dstname vendor_destination_name
dstosname vendor_destination_os_name
dstport destination_port
dstserver vendor_destination_server
dtime event_created
dtype vendor_dtype
duration event_duration
dvid vendor_device_id
encryption wifi_encryption
epid vendor_endpoint_id
euid vendor_enduser_id
eventtime vendor_eventtime
eventtype vendor_eventtype
fctemssn vendor_client_endpoint_ssn
fctuid vendor_client_user_id
filename file_name
filetype file_type
from source_user_email
hostname destination_domain
icmpcode vendor_icmpcode
icmpid vendor_icmpid
icmptype vendor_icmptype
id vendor_id
idseq event_uid
ipaddr dns_value
itime event_received_time
itime_t vendor_log_received
lanin vendor_incoming_lantraffic_bytes
lanout vendor_outgoing_lantraffic_bytes
locip local_ip
logdesc vendor_logdesc
logid event_id
mastersrcmac vendor_source_master_mac
method vendor_method
msg vendor_msg
osname vendor_source_os_name
policyid policy_id
policyname policy_name
policytype policy_type
poluuid policy_uid
pri vendor_pri
profile vendor_profile
proto vendor_proto
qclass query_class
qname query_request
qtype query_record_type
qtypeval query_record_type_code
quarskip vendor_quarskip
rcvdbyte destination_bytes_sent
rcvdpkt destination_packets_sent
reason vendor_reason
ref vendor_reference_url
remip remote_ip
remotewtptime vendor_remote_wifi_radius_authentication_time
security vendor_security
sender http_sender
sentbyte source_bytes_sent
sentpkt source_packets_sent
service network_application
sessionid session_id
severity vendor_severity
sn vendor_sn
srccountry vendor_source_country
srcdomain vendor_srcdomain
srchwvendor vendor_source_hw_interface
srcintf network_interface_in
srcintfrole vendor_source_interface_role
srcip source_ip
srcmac source_mac
srcname vendor_source_name
srcport source_port
srcserver vendor_source_server
srcuuid vendor_source_uuid
ssid wifi_ssid
stamac host_mac
status vendor_status
subject vendor_subject
subtype vendor_subtype
threat threat_category
time vendor_time
to destination_user_email
trandisp vendor_nat_translation_type
tranip vendor_tranip
tranport vendor_tranport
transip vendor_transip
transport vendor_transport
tunnelip tunnel_ip
type vendor_type
tz vendor_time_zone
ui vendor_ui
url http_url
user user_name
utmaction vendor_utm_action
utmref vendor_reference_to_utm
vap wifi_virtual_access_point
vd virtual_domain_name
vendor_hostname host_hostname
virus vendor_virus
viruscat vendor_viruscat
virusid vendor_virusid
vrf vendor_virtual_routing_and_forwarding
wanin vendor_incoming_wantraffic_bytes
wanout vendor_outgoing_wantraffic_bytes

Event Enrichment

The following fields are added to all Fortinet FortiGate event messages:

Field Name Description
alert_severity Text description of the alert severity for detection events (virus, anomaly, ips, signature, app-ctrl)
destination_reference Mapped from source_ip or source_hostname in that order
event_severity Text description of the severity rating of the event
event_severity_level Numeric representation of the severity rating of the event
event_source Source system that generated the event
host_reference Mapped from host_ip or host_hostname in that order - allows a common field to reference for messages that do not provide both
network_direction Normalized network traffic direction (inbound, outbound, lateral) mapped from the FortiGate direction field
source_reference Mapped from source_ip or source_hostname in that order
vendor_event_severity_level Vendor-defined numeric severity rating for the event
vendor_full_url The normalized full url based on combination of destination_domain and http_url
alert_category Threat category for detection events (virus type, attack name, subtype fallback)
alert_severity_level Numeric alert severity level mapped from FortiGate severity
alert_signature Threat or rule name for detection events
event_action Normalized action (allowed/blocked) mapped from FortiGate action field
event_outcome Authentication outcome (success/failure) for VPN and user authentication events
application_name Application or service name for authentication events (VPN tunnel type, auth server)
service_name Service name for service start/stop events

Fortinet FortiGate Spotlight Content Pack

The Fortinet FortiGate Spotlight Pack offers an overview dashboard with the following tabs:

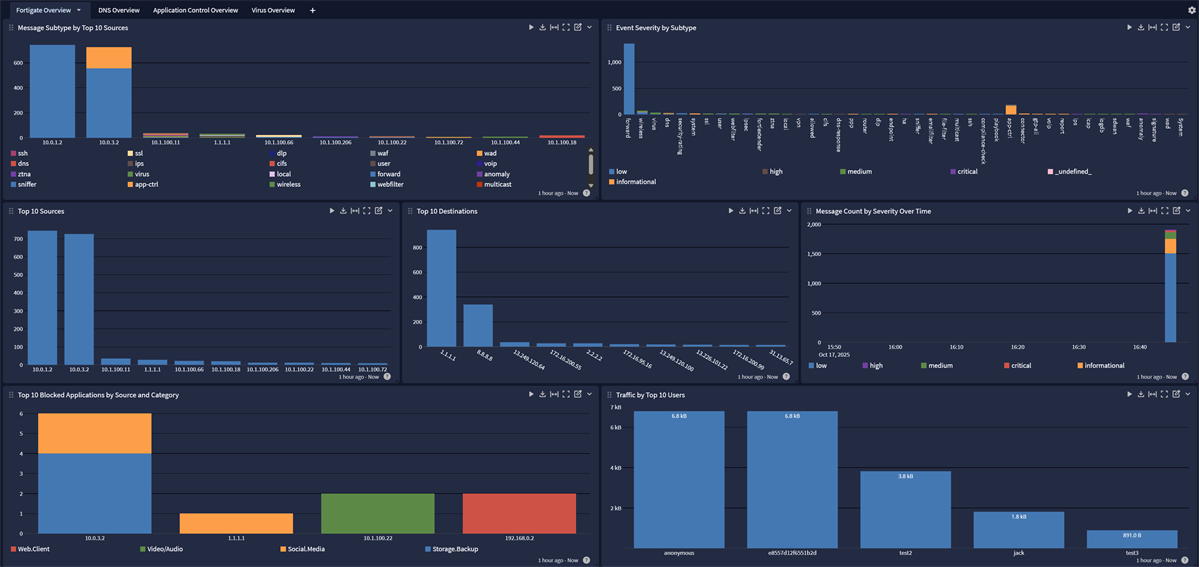

Overview

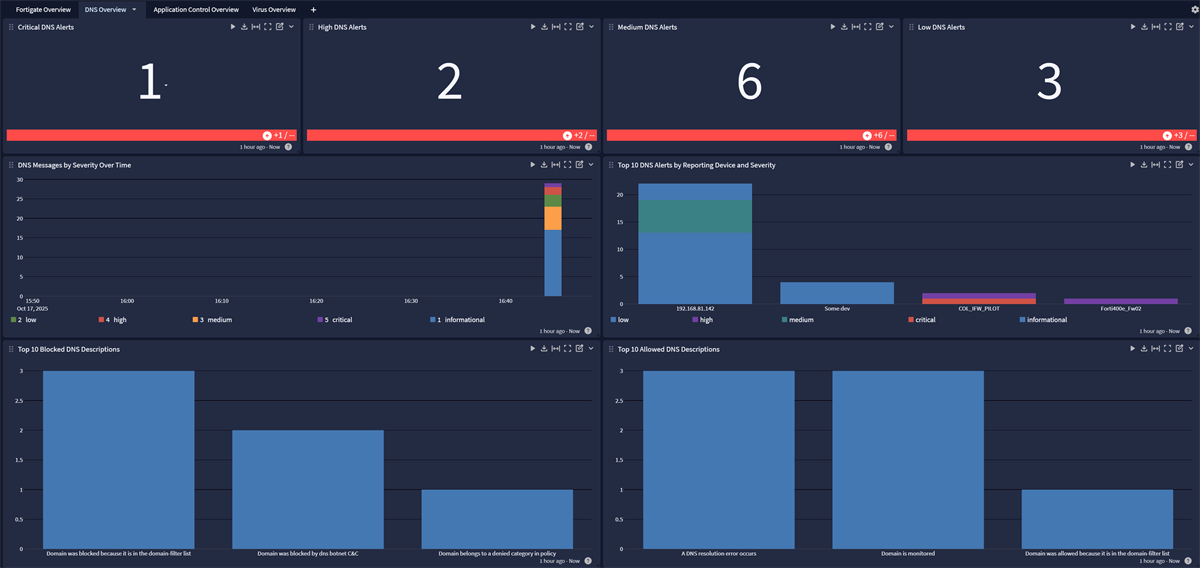

DNS

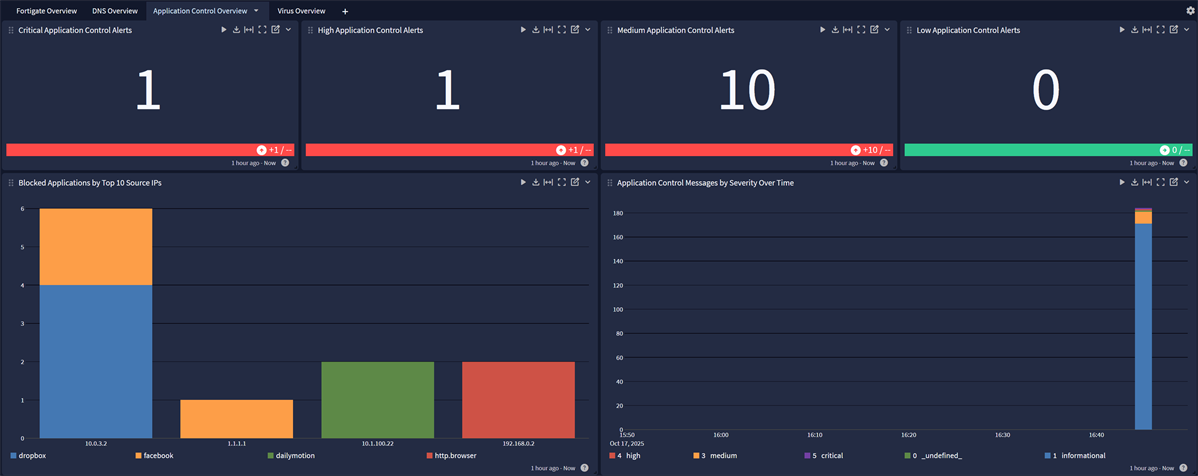

Application Control

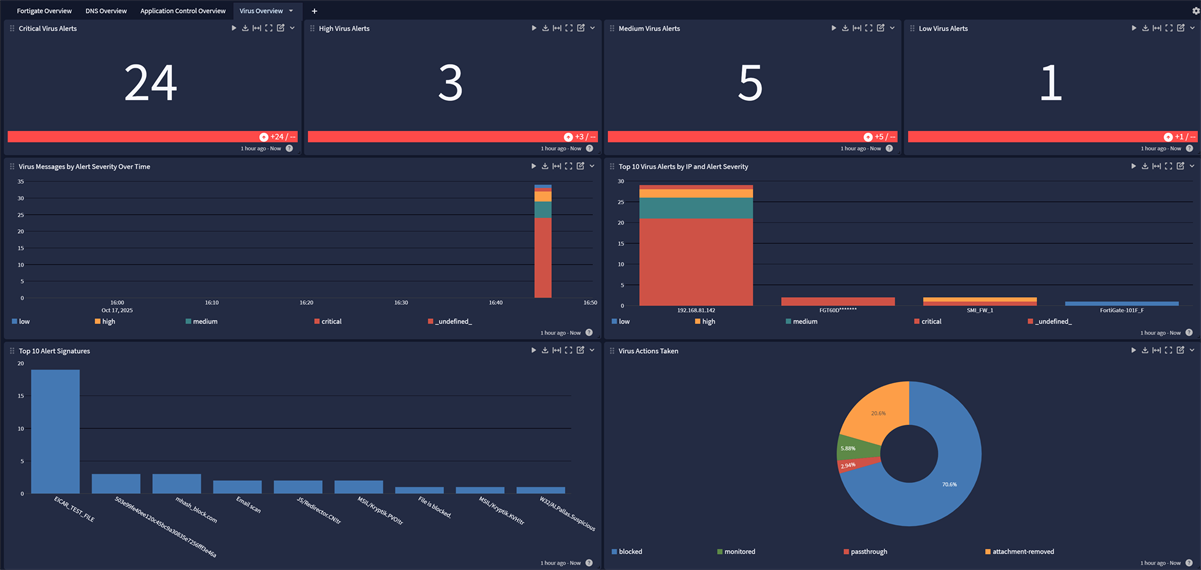

Virus
