F5 BIG-IP Content Pack

The following content pack is available for use with a Graylog Illuminate license and Graylog Enterprise or Graylog Security. Contact sales to learn more about obtaining Illuminate.

F5 BIG-IP is an application delivery controller platform that combines load balancing, traffic management, and security services to optimize, secure, and scale networked applications.

Supported Versions

  • F5 BIG-IP ASM 17.5.1

  • F5 BIG-IP AFM 17.5.1

Supported Log Types

  • ASM, AFM

  • For TMM logs: HTTP_RESPONSE, HTTP_REQUEST

Requirements

  • Configure F5 BIG-IP to transmit Syslog to your Graylog server Syslog input.

Stream Configuration

This technology pack includes 1 stream:

  • "Illuminate:F5 Messages"

Hint: If this stream does not exist prior to the activation of this pack then it will be created and configured to route messages to this stream and the associated index set. There should not be any stream rules configured for this stream.

Index Set Configuration

This technology pack includes 1 index set definition:

  • "F5 Bigip Messages"

Hint:If this index set is already defined, then nothing will be changed. If this index set does not exist, then it will be created with retention settings of a daily rotation and 90 days of retention. These settings can be adjusted as required after installation.

Log Collection

This pack parses logs from the following sources:

  • Filebeat

  • Syslog (beta support)

  • CEF (beta support)

Filebeat Configuration

  1. Refer to the official documentation to set up Graylog Sidecar for Filebeat.

  2. Create a matching Beats input in Graylog.

  3. Ensure that the option Do not add Beats type as prefix is disabled.

  4. Create an API access token and custom Windows Filebeat collector.

  5. Configure the collector to ship messages to Graylog (select the right path). The Filebeat input must add the field event_source_product: f5_bigip for the parser to identify the log source as F5 BIG-IP.

  6. The option fields_under_root must be set to true for message identification to work. See the following example:

    Copy
    filebeat.inputs:
    - type: log
    enabled: true
    paths:
    - /var/log/f5/*.log
    fields:
    event_source_product: f5_bigip
    fields_under_root: true

  7. Adjust the file path in the configuration file if needed.

  8. Install Graylog Sidecar on the client host.

  9. Edit the Graylog Sidecar client configuration with your Graylog server API URL and API access token.

Sending Logs via Syslog

F5 BIG-IP supports Syslog. This content pack may support F5-BIG-IP Syslog for the modules ASM, and AFM.

Sending Logs in CEF Format

F5 BIG-IP supports the CEF format. This content pack may work with CEF and Graylog's CEF Input, but due to a lack of example logs, the full function cannot be guaranteed. If you want to use CEF and you have test logs, please provide us with some sanitized samples.

Log Format Examples

Apr 10 09:25:46 172.16.1.2 ASM:unit_hostname="f5_01",management_ip_address="192.168.1.10",management_ip_address_2="N/A",http_class_name="/Common/App_WAF",web_application_name="/Common/App_WAF",policy_name="/Common/App_WAF",policy_apply_date="2025-04-08 2:29:51",violations="N/A",support_id="142371702665",request_status="passed",response_code="200",ip_client="11.10.5.46",route_domain="0",method="GET",protocol="HTTPS",query_string="",x_forwarded_for_header_value="11.10.5.2",sig_ids="N/A",sig_names="N/A",date_time="2025-04-10 2:25:46",severity="Informational",attack_type="N/A",geo_location="RO",ip_address_intelligence="N/A",username="N/A",session_id="C3c1eaf29ce05e59",src_port="51124",dest_port="443",dest_ip="172.16.1.11",sub_violations="N/A",virus_name="N/A",violation_rating="0",websocket_direction="N/A",websocket_message_type="N/A",device_id="N/A",staged_sig_ids="",staged_sig_names="",threat_campaign_names="N/A",staged_threat_campaign_names="N/A",blocking_exception_reason="N/A",captcha_result="not_received",microservice="N/A",tap_event_id="N/A",tap_vid="N/A",vs_name="/Common/vs-443-2021-apptest1.dom.ro-bkp",sig_cves="N/A",staged_sig_cves="N/A",uri="/notif/summary",fragment="",request="GET /notif/summary HTTP/1.1\r\nHost: apptest.dom.ro\r\nConnection: keep-alive\r\nsec-ch-ua-platform: %22Windows%22\r\nUser-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/135.0.0.0 Safari/537.36\r\nsec-ch-ua: %22Google Chrome%22;v=%22135%22, %22Not-A.Brand%22;v=%228%22, %22Chromium%22;v=%22135%22\r\nsec-ch-ua-mobile: ?0\r\nAccept: */*\r\nSec-Fetch-Site: same-origin\r\nSec-Fetch-Mode: cors\r\nSec-Fetch-Dest: empty\r\nAccept-Encoding: gzip, deflate, br, zstd\r\nAccept-Language: en-US,en;q=0.9,ro;q=0.8\r\nCookie: _ga=GA1.1.845057894.1744101172; SESSION=6dceff56-9d1e-421c-ab0e-820e91591bf8; _ga_X2KD43T4E2=GS1.1.1744263.4.1.14265953.0.0.0; TS67d45652027=08fbd28c49065a7bf1423084f5cc3e81130007f7d872e9d324682b29696

Apr 10 2:25:46 172.16.1.2 AFM:acl_rule_name="",action="Open",hostname="bigip-3.pme-ds.f5.com",bigip_mgmt_ip="192.168.73.33",context_name="/Common/topaz3-all3",context_type="Virtual Server",date_time="Oct 04 2012 13:18:04",dest_ip="10.3.1.200",dest_port="443",device_product="Advanced Firewall Module",device_vendor="F5",device_version="11.3.0.2095.0",drop_reason="",errdefs_msgno="23003137",errdefs_msg_name="Network Event",ip_protocol="TCP",severity="8",partition_name="Common",route_domain="0",source_ip="10.3.1.101",source_port="39329",vlan="/Common/external"

Apr 10 2:24:59 172.16.1.2 1 2025-04-10T2:25:46.854685+03:00 f5_short tmm 8545 23003147 [F5@12276 hostname="f5_01" bigip_mgmt_ip="192.168.1.10" bigip_mgmt_ip2="::" client_ip="46.97.34.38" client_ip_geo_location="RO" client_port="28220" client_request_uri="/version.json"]

What is Provided

  • Parsing rules to extract F5 BIG-IP logs (AFM, ASM) into Graylog schema compatible fields.

  • Simple Dashboard with a general Overview and an Overview for ASM logs

GIM Categorization

GIM categorization is provided for the following messages:

vendor_event_type gim_event_type_code
DNS Event 149999
Network Event 120000

Message Fields Included in This Pack

General Parsing

Original Field Name Field Name Example Value Field Type Description
part of the header application_name ASM string Application Name or Syslog Application Name
dest_ip destination_ip 172.16.1.11 string Destination IP address
dest_port destination_port 443 long Destination Port
hostname host_hostname bigip-3.pme-ds.f5.com string Hostname of the F5 instance
Mapped event_action allowed string Mapped Event Action
Mapped event_severity informational string mapped Event Severity
Mapped event_severity_level 1 long mapped Event Severity Level
method http_request_method GET string HTTP method used
ip_protocol network_transport tcp string Network Transport
response_code http_response_code 200 long HTTP Response Code used
uri http_uri /notif/summary string HTTP URI used
protocol network_protocol https string Network Protocol
session_id session_id C3c1eaf29ce05e59 string used Session ID
src_ip source_ip 11.10.5.46 string Source IP address
src_port source_port 51124 long Source Port
username user_name Tom string User Name

F5 BIG-IP Spotlight Pack

This F5 BIG-IP spotlight has a general overview and an ASM overview dashboard

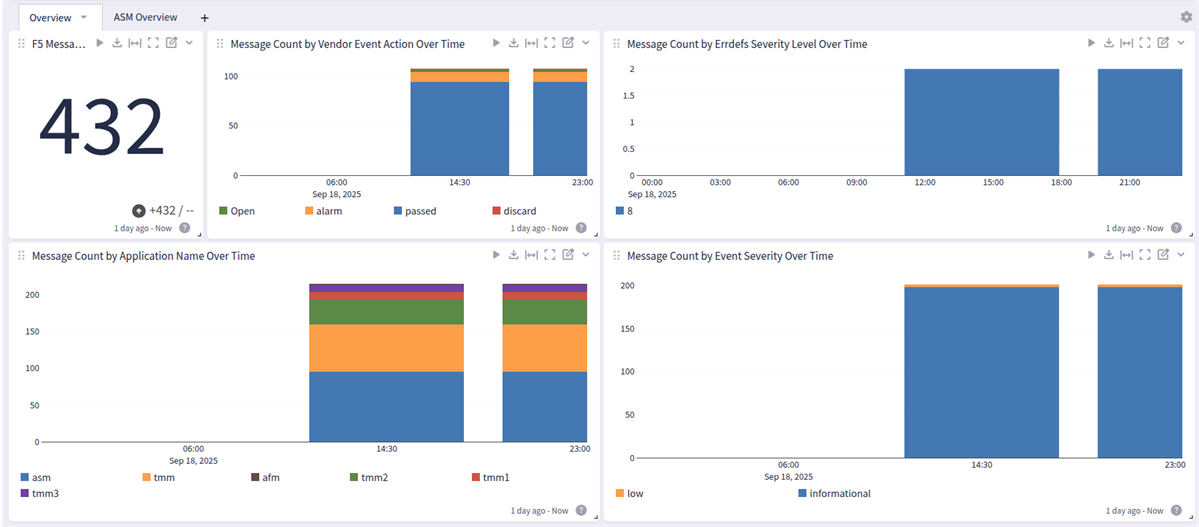

F5 BIG-IP: Overview Tab

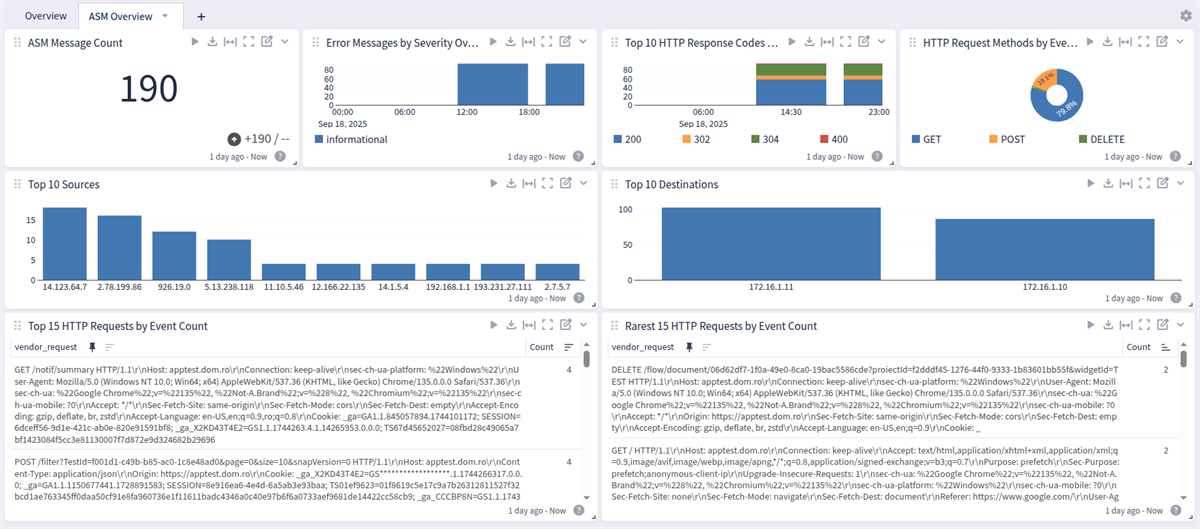

F5 BIG-IP ASM Overview Tab
