Cisco Umbrella Content Pack

The following content pack is available for use with a Graylog Illuminate license and Graylog Enterprise or Graylog Security. Contact sales to learn more about obtaining Illuminate.

Cisco Umbrella is a cloud-delivered DNS and web security service providing DNS-layer security, secure web gateway (proxy), and audit logging. This technology pack processes Cisco Umbrella DNS, Proxy, and Audit logs delivered via S3, providing normalization and enrichment of security events.

Supported Version(s)

Cisco Secure Client 5.1.3.62
Cisco Umbrella Schema version 8 or 9

Requirements

Cisco Secure Client 5.1.3.62 or later.
Cisco Umbrella Schema version 8 or 9.
Graylog Enterprise version 6.1.0 or later.
Graylog's custom AWS S3 input configured to read from the Umbrella log bucket.

Stream Configuration

This technology pack includes 1 stream:

"Illuminate:Cisco Device Messages"

Hint: If this stream does not exist prior to the activation of this pack then it will be created and configured to route messages to this stream and the associated index set. There should not be any stream rules configured for this stream.

Index Set Configuration

This technology pack includes 1 index set definition:

"Cisco Devices Event Log Messages"

Hint: If this index set is already defined, then nothing will be changed. If this index set does not exist, then it will be created with retention settings of a daily rotation and 90 days of retention. These settings can be adjusted as required after installation.

Log Collection

Cisco Umbrella logs are delivered via S3 to Graylog using the custom AWS S3 input.

Graylog Server Configuration

Set up log ingestion with Graylog's custom AWS S3 input.
Configure the S3 input to read from the Cisco Umbrella log bucket.
Ensure the S3 bucket contains the expected folder structure: dnslogs/, proxylogs/, and/or auditlogs/.

Log Format Examples

Cisco Umbrella delivers logs in CSV format. The following are examples of each log type.

DNS Logs

"2024-06-26 17:55:56","DESKTOP-FNV6TE0","DESKTOP-FNV6TE0","172.16.14.19","182.76.175.118","Allowed","1 (A)","NOERROR","ecs.office.com.","Chat,Instant Messaging,Software/Technology,Business Services,Internet Telephony,Application,Business and Industry,Computers and Internet","Anyconnect Roaming Client","Anyconnect Roaming Client",""

Proxy Logs

"2024-06-26 17:55:56","DESKTOP-FNV6TE0","172.16.14.19","182.76.175.118","23.49.60.199","application/octet-stream","Blocked","http://r3.o.lencr.org/","","Mozilla/5.0 (Windows NT 10.0; Win64; x64; rv:124.0) Gecko/20100101 Firefox/124.0","200","85","908","503","72dd7db9b141ab3c1dabec31ad79a74cb19fc7999ae56a0e59e0987494e76710","Non-Profits,Infrastructure and Content Delivery Networks","","","UNKNOWN","","0","Anyconnect Roaming Client","","DESKTOP-FNV6TE0","Anyconnect Roaming Client","POST","","","","14508972","","","",""

Audit Logs

"1805868361","2024-07-15 05:16:57","test@acme.com","Bobby Joe","bundles","update","182.76.175.118","frontendModifiedAt: 2024-07-09 13:34:16\nmodifiedAt: 2024-07-09 15:42:47\npriority: 1","frontendModifiedAt: 2024-07-15 05:15:51\nmodifiedAt: 2024-07-15 05:16:57\npriority: 3"

What is Provided

Parsing rules to extract Cisco Umbrella logs into Graylog schema-compatible fields.
GIM code 140000 (dns query) for DNS logs.
GIM code 180300 (http proxied communication) for Proxy logs.
GIM code 220500 (audit policy changed) for Audit logs.
GIM code 300001 (network detection) for blocked DNS and Proxy events.
Event action mapping (Allowed/Blocked) for DNS and Proxy logs.
Cisco Umbrella Spotlight dashboard.

GIM Categorization

GIM categorization is provided for the following log types:

Log Type	gim_event_type_code	gim_event_category	gim_event_subcategory	gim_event_type
DNS logs (all)	140000	name resolution	name resolution.dns request	dns query
DNS logs (blocked)	300001	detection	detection.network_detection	network_detection
Proxy logs (all)	180300	http	http.proxied	http proxied communication
Proxy logs (blocked)	300001	detection	detection.network_detection	network_detection
Audit logs	220500	audit	audit.policy	audit policy changed

Cisco Umbrella Spotlight

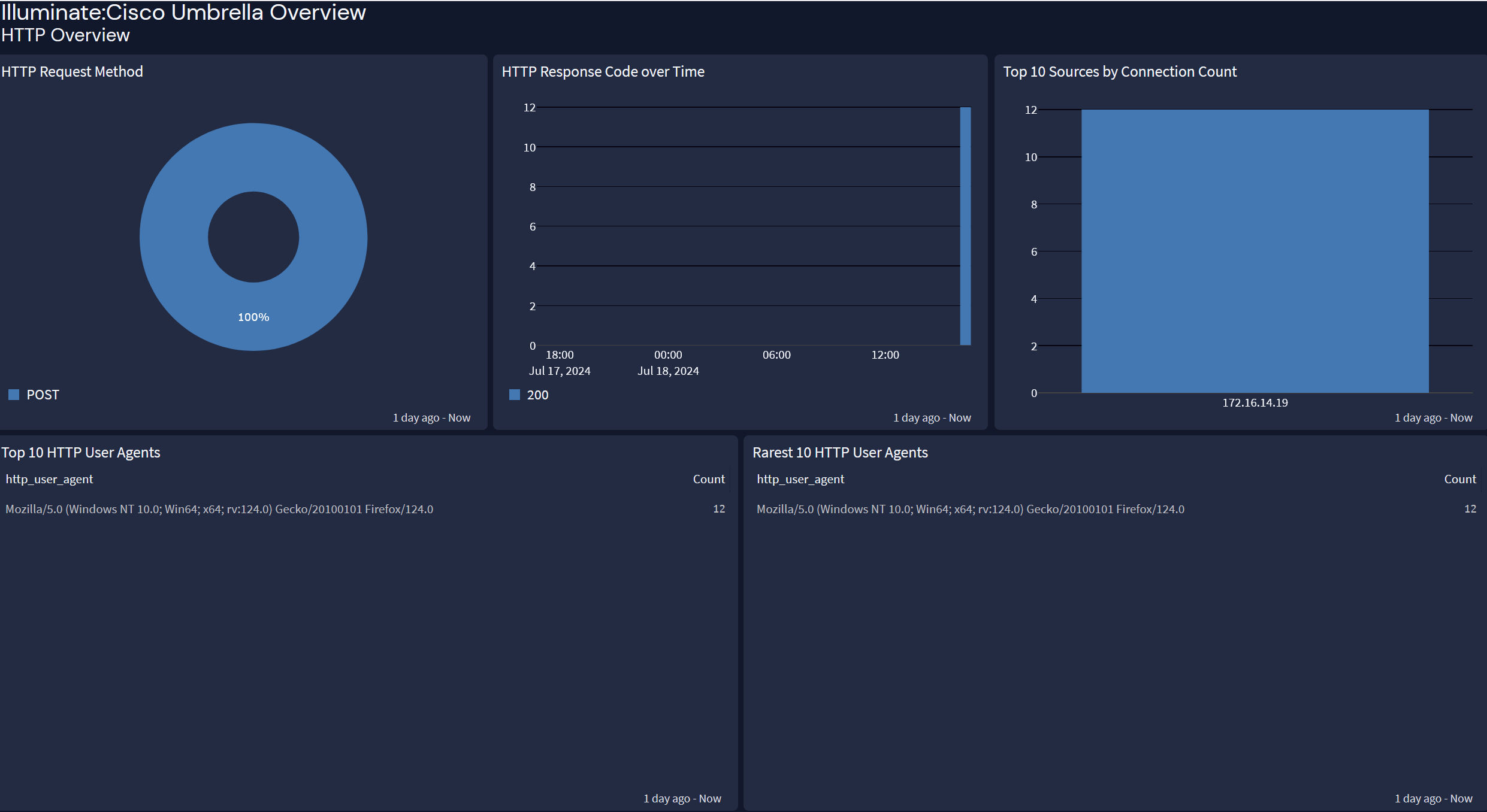

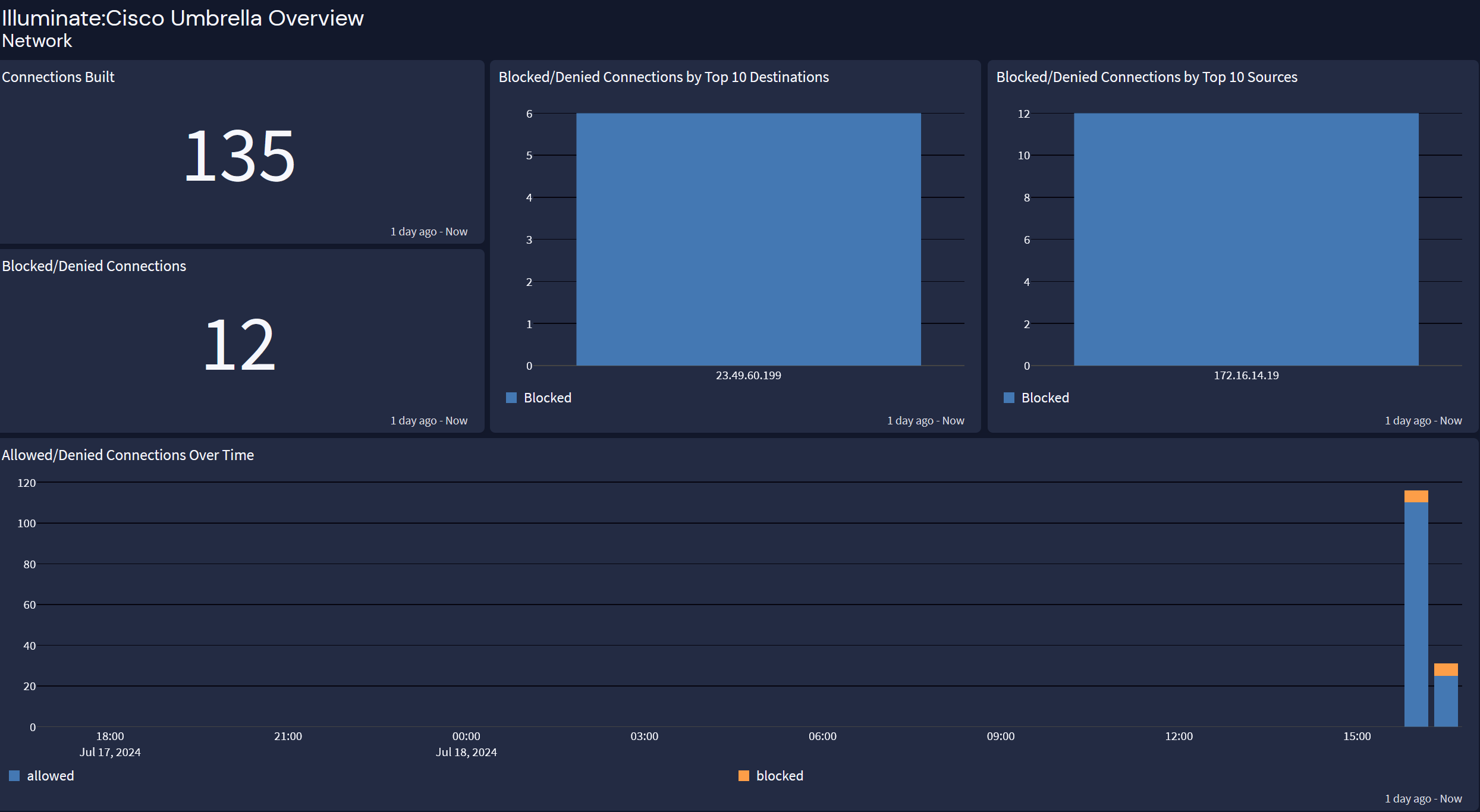

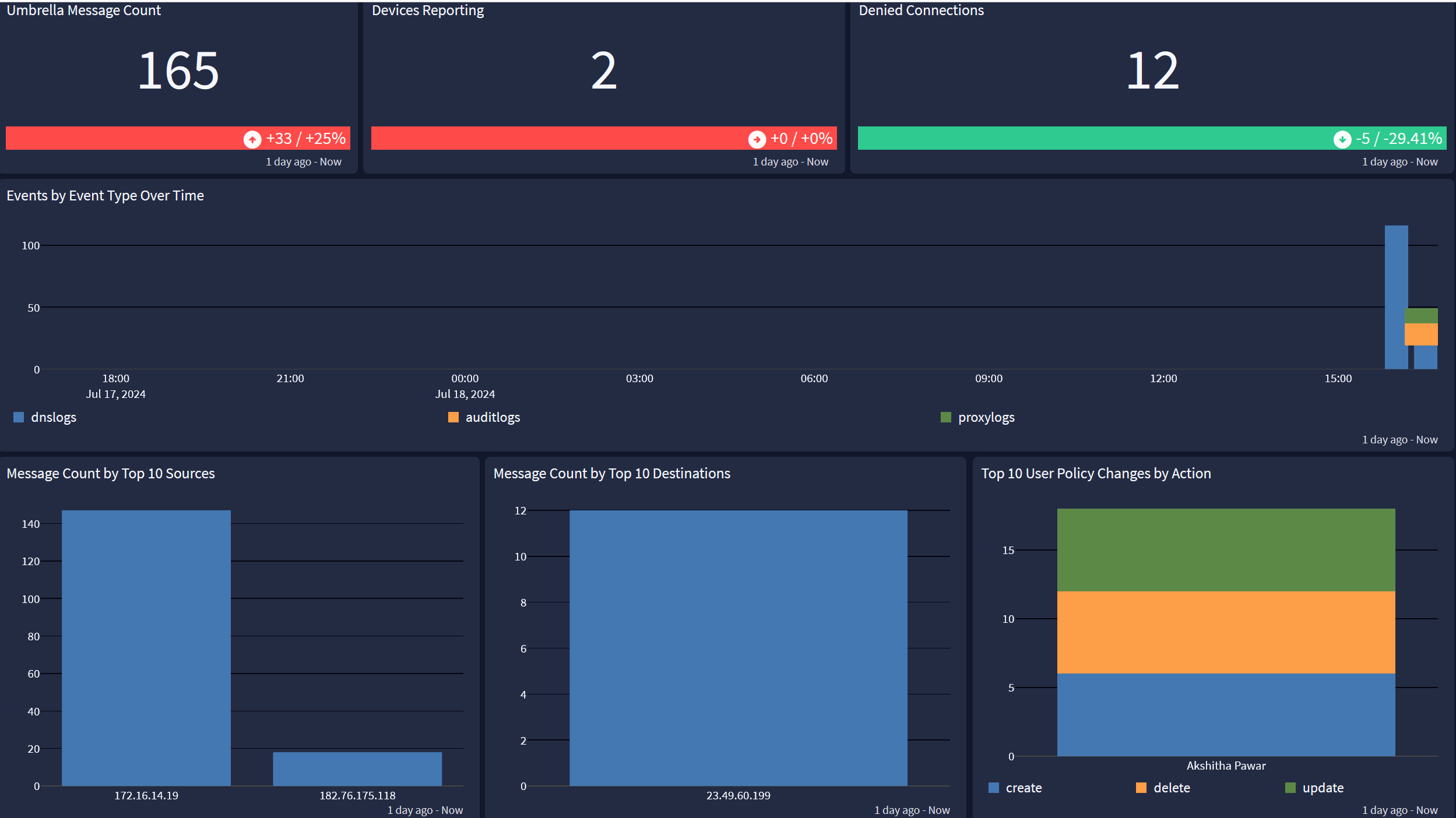

The Cisco Umbrella Spotlight offers an overview dashboard with three tabs: Overview, Network, and HTTP Events.
