Cisco IOS Content Pack

The following content pack is available for use with a Graylog Illuminate license and Graylog Enterprise or Graylog Security. Contact sales to learn more about obtaining Illuminate.

Proprietary software used in Cisco routers and switches for robust network traffic management including data, voice, and video across communications environments.

This technology pack will process Cisco IOS syslog messages, providing normalization and enrichment of common events of interest.

Supported Version(s)

  • Cisco IOS XE 17.14.x

Requirements

  • Cisco IOS XE 17.14.x

  • Graylog 5.2.6+

Stream Configuration

This technology pack includes 1 stream:

  • "Illuminate:Cisco Device Messages"

Hint: If this stream does not exist prior to the activation of this pack then it will be created and configured to route messages to this stream and the associated index set. There should not be any stream rules configured for this stream.

Index Set Configuration

This technology pack includes 1 index set definition:

  • Cisco Devices Event Log Messages

Hint: If this index set is already defined, then nothing will be changed. If this index set does not exist, then it will be created with retention settings of a daily rotation and 90 days of retention. These settings can be adjusted as required after installation.

Log Collection and Delivery

Users may send logs via syslog or raw format (TCP or UDP). Cisco products often include timestamps in logs that may not be compatible with Graylog. If this occurs, we recommend you send logs to a raw input.

Syslog or RAW Input

  1. Configure the Cisco IOS device to send syslog to your Graylog server: logging host <graylog-ip>

  2. Set the logging severity level: logging trap informational

  3. Enable timestamps: service timestamps log datetime msec

  4. See the Graylog documentation for information on creating a Syslog or RAW/Plaintext input.

Log Format Examples

These are example logs for the various processed log types.

SEC_LOGIN - Authentication Events

Mar 12 18:46:11: %SEC_LOGIN-5-LOGIN_SUCCESS: Login Success [user: vijay.rana] [Source: 172.17.27.132] [localport: 22] at 13:13:16 IST Fri Apr 7 2023 Mar 12 18:46:11: %SEC_LOGIN-4-LOGIN_FAILED: Login failed [user: admin] [Source: 172.17.27.132] [localport: 22] [Reason: Login Authentication Failed] at 13:12:59 IST Fri Apr 7 2023

AAA - Account Lock/Unlock Events

Jul 12 00:33:29: %AAA-5-USER_LOCKED: User user1 locked out on authentication failure. Jul 12 00:19:44: %AAA-5-USER_UNLOCKED: User cisco unlocked by console (cierswbv5-te-lab19-sc, SJ)

SEC - IP Access List Log Events

Aug 17 02:41:39.326: %SEC-6-IPACCESSLOGP: list 105 denied udp 192.168.12.157(55250) -> 192.168.12.255(11550), 1 packet Aug 17 02:43:20.346: %SEC-6-IPACCESSLOGSP: list INBOUND-ON-F11 denied igmp 192.168.110.10 -> 224.0.0.2 (20), 1 packet Feb 8 03:11:47.272: %SEC-6-IPACCESSLOGRP: list 105 denied igmp 198.51.100.197 -> 224.0.0.22, 1 packet Aug 17 02:43:28.403: %SEC-6-IPACCESSLOGDP: list 150 denied icmp 192.168.12.202 -> 198.51.100.1 (3/3), 32 packets Feb 9 03:11:47.272: %SEC-6-IPACCESSLOGNP: list INBOUND denied 113 192.168.110.10 -> 224.0.0.2 (20), 1 packet Aug 17 02:43:28.403: %SEC-6-IPACCESSLOGRL: access-list logging rate-limited or missed 23 packets

URLF - URL Filtering Events

Mar 12 18:46:11: %URLF-4-URL_BLOCKED: Access denied URL http://www.google.com; client 12.54.192.6:54678 server 64.192.14.2:80 Mar 12 18:46:11: %URLF-6-URL_ALLOWED: Access allowed for URL http://www.websense.com/; client 10.54.192.6:54123 server 192.168.0.1:80 Mar 12 18:46:11: %URLF-4-SITE_BLOCKED: Access denied for the site 'www.sports.com'; client 10.54.192.6:34557 server 172.24.50.12:80 Mar 12 18:46:11: %URLF-6-SITE_ALLOWED: Client 10.0.0.39:2848 accessed server 80.239.156.195:80 Mar 12 18:46:11: %URLF-3-SERVER_DOWN: 8.8.8.8 Mar 12 18:46:11: %URLF-5-SERVER_UP: 8.8.8.8 Mar 12 18:46:11: %URLF-3-ALLOW_MODE: Connection to all URL filter servers are down and ALLOW MODE is ON

AUTHMGR, CRYPTO, SYS, LINK, LINEPROTO, SSH, PARSER, SNMP Events

Apr 25 14:30:38: %AUTHMGR-5-SECURITY_VIOLATION: Security violation on GigabitEthernet0/15, New MAC address 00:1B:44:11:3A:B7 is seen Apr 25 10:31:02: %CRYPTO-5-SESSION_STATUS: Crypto tunnel is down, destination: 192.168.1.2 Apr 25 10:17:45: %SYS-5-CONFIG_I: Configured from console by user1 on vty0 (10.1.1.1) Feb 8 08:52:05.068: %LINK-3-UPDOWN: Interface GigabitEthernet0/1, changed state to up Feb 14 09:40:10.326: %LINEPROTO-5-UPDOWN: Line protocol on Interface GigabitEthernet0/1, changed state to up Feb 14 12:02:38: %LINK-5-CHANGED: Interface FastEthernet0/1, changed state to administratively down Apr 25 14:30:45: %SSH-5-SSH2_SESSION: SSH2 Session request from 192.168.100.50 (tty = 0) using crypto cipher 'aes256-ctr', hmac 'hmac-sha2-256' Succeeded Apr 25 14:31:22: %SSH-5-SSH2_CLOSE: SSH2 Session from 192.168.100.50 (tty = 0) for user 'admin' using crypto cipher 'aes256-ctr', hmac 'hmac-sha2-256' closed Apr 25 14:32:10: %SSH-4-SSH2_UNEXPECTED_MSG: Unexpected message type has arrived. Terminating the connection from 192.168.100.75 Apr 25 10:18:02: %PARSER-5-CFGLOG_LOGGEDCMD: User:admin logged command:interface GigabitEthernet0/0 Apr 25 14:33:05: %SNMP-3-AUTH_FAILURE: Authentication failure for SNMP request from host 192.168.1.100

What is Provided

  • Parsing rules for normalization and enrichment of Cisco IOS syslog messages.

  • Categorization for 30 log types including SEC, LINK, LINEPROTO, CRYPTO, AUTHMGR, SYS, SEC_LOGIN, AAA, URLF, SSH, PARSER, and SNMP event categories.

GIM Categorization

GIM categorization is provided for the following messages:

vendor_event_type gim_event_type_code gim_event_category gim_event_subcategory gim_event_type
SEC_LOGIN-5-LOGIN_SUCCESS 100000 authentication authentication.logon logon
SEC_LOGIN-4-LOGIN_FAILED 100500 authentication authentication.credential validation credential validation
AAA-5-USER_LOCKED 111500 iam iam.object disable account locked
AAA-5-USER_UNLOCKED 112000 iam iam.object enable account unlocked
SEC-6-IPACCESSLOGRP 120000 network network.network connection network connection
SEC-6-IPACCESSLOGSP 120000 network network.network connection network connection
SEC-6-IPACCESSLOGP 120000 network network.network connection network connection
SEC-6-IPACCESSLOGDP 120000 network network.network connection network connection
SEC-6-IPACCESSLOGNP 120000 network network.network connection network connection
SEC-6-IPACCESSLOGRL 120000 network network.network connection network connection
URLF-4-URL_BLOCKED 180300|120000 http / network http.proxied / network.network connection http proxied communication / network connection
URLF-6-URL_ALLOWED 180300|120000 http / network http.proxied / network.network connection http proxied communication / network connection
URLF-4-SITE_BLOCKED 180300|120000 http / network http.proxied / network.network connection http proxied communication / network connection
URLF-6-SITE_ALLOWED 120000 network network.network connection network connection
URLF-3-SERVER_DOWN 120000 network network.network connection network connection
URLF-6-SERVER_DOWN 120000 network network.network connection network connection
URLF-5-SERVER_UP 120000 network network.network connection network connection
URLF-6-SERVER_UP 120000 network network.network connection network connection
URLF-3-ALLOW_MODE 120000 network network.network connection network connection
AUTHMGR-5-SECURITY_VIOLATION 101501 authentication authentication.access policy device policy violation
CRYPTO-5-SESSION_STATUS 120000 network network.network connection network connection
SYS-5-CONFIG_I 211000 endpoint service.configuration service configuration change
SSH-5-SSH2_SESSION 100000 authentication authentication.logon logon
SSH-5-SSH2_CLOSE 120300 network network.close network connection ended
SSH-4-SSH2_UNEXPECTED_MSG 100500 authentication authentication.credential validation credential validation
PARSER-5-CFGLOG_LOGGEDCMD 211000 endpoint service.configuration service configuration change
SNMP-3-AUTH_FAILURE 100500 authentication authentication.credential validation credential validation

Message Fields Included in This Pack

General Fields

These fields are extracted from all Cisco IOS syslog messages.

Field Name Example Value Field Type Description
event_source_product CISCO-IOS keyword Identifies the log source as Cisco IOS
vendor_facility SEC_LOGIN keyword The Cisco IOS facility component extracted from the event type (e.g. SEC, AAA, URLF)
vendor_subtype LOGIN_SUCCESS keyword The Cisco IOS mnemonic component extracted from the event type
vendor_event_severity notice keyword The Cisco IOS severity label mapped from the numeric severity level
vendor_event_severity_level 5 long The numeric Cisco IOS severity level (0=emergency through 7=debug)
event_severity low keyword The GIM severity label mapped from the vendor severity level
event_severity_level 2 long The GIM severity level (1=informational through 5=critical)
gim_event_type_code 100000 keyword The GIM event type code assigned to this event

Authentication Fields (SEC_LOGIN)

Additional fields extracted for SEC_LOGIN login success and failure events.

Field Name Example Value Field Type Description
application_name cisco-ios keyword Set to 'cisco-ios' for SEC_LOGIN events
user_name admin keyword The username that attempted to log in
source_ip 172.17.27.132 ip The source IP address of the login attempt
source_port 22 long The local port used for the login session
event_outcome success keyword The normalized outcome: success or failure
vendor_event_outcome Success keyword The raw outcome string extracted from the log
vendor_event_outcome_reason Login Authentication Failed keyword The reason for login failure, if provided

IAM Fields (AAA)

Additional fields extracted for AAA account lock and unlock events.

Field Name Example Value Field Type Description
user_name user1 keyword The username that was locked or unlocked
source_user_name console (hostname, SJ) keyword The user or entity that performed the unlock action (AAA-5-USER_UNLOCKED only)

ACL Log Fields (SEC-6-IPACCESSLOG*)

Fields extracted from IP access list log events (6 variants: LOGP, LOGSP, LOGRP, LOGDP, LOGNP, LOGRL).

Field Name Example Value Field Type Description
source_ip 192.168.12.157 ip Source IP address from the ACL log entry
source_port 55250 long Source port from the ACL log entry (TCP/UDP)
destination_ip 192.168.12.255 ip Destination IP address from the ACL log entry
destination_port 11550 long Destination port from the ACL log entry (TCP/UDP)
network_protocol udp keyword The network protocol (tcp, udp, icmp, igmp, etc.)
event_action blocked keyword The normalized action: allowed or blocked
vendor_event_action denied keyword The raw action string from the log (denied, permitted, etc.)
vendor_list_id 105 keyword The ACL name or number that triggered the log entry
vendor_packet_count 1 keyword The number of packets matched by this ACL entry
vendor_icmp_type 3 keyword The ICMP type number (ICMP events only)
icmp_code 3 keyword The ICMP code number (ICMP events only)

URL Filter Fields (URLF-*)

Fields extracted from URL filtering events (URL_BLOCKED, URL_ALLOWED, SITE_BLOCKED, SITE_ALLOWED, SERVER_DOWN, SERVER_UP, ALLOW_MODE).

Field Name Example Value Field Type Description
source_ip 10.54.192.6 ip Source IP address of the client
source_port 54678 long Source port of the client connection
destination_ip 64.192.14.2 ip Destination IP address of the server
destination_port 80 long Destination port of the server connection
http_uri http://www.google.com keyword The URL or site name that was filtered (URL_BLOCKED, URL_ALLOWED, SITE_BLOCKED)
event_action blocked keyword The normalized action: allowed or blocked
vendor_event_action denied keyword The raw action string from the log
network_transport NETWORK_TRANSPORT_NOT_DEFINED keyword Set to a static placeholder as transport is not present in these logs

Other Event Fields (AUTHMGR, CRYPTO, SYS, LINK, LINEPROTO, SSH, PARSER, SNMP)

Fields extracted from network infrastructure, device management, SSH session, configuration logging, and SNMP authentication events.

Field Name Example Value Field Type Description
vendor_interface_name GigabitEthernet0/1 keyword The network interface name (LINK, LINEPROTO, AUTHMGR events)
vendor_interface_state up keyword The interface or tunnel state (LINK, LINEPROTO, CRYPTO events)
destination_ip 192.168.1.2 ip Destination IP of the VPN tunnel (CRYPTO events)
mac_address 00:1B:44:11:3A:B7 keyword The MAC address of the violating device (AUTHMGR-SECURITY_VIOLATION)
source_ip 10.1.1.1 ip Source IP of the managing terminal (SYS-CONFIG_I) or SSH/SNMP client
vendor_crypto_cipher aes256-ctr keyword The encryption cipher used in the SSH session (SSH events)
vendor_crypto_hmac hmac-sha2-256 keyword The HMAC algorithm used in the SSH session (SSH events)
vendor_tty_line 0 long The TTY line number of the SSH session (SSH events)
user_name admin keyword Username of the SSH session user (SSH-5-SSH2_CLOSE, PARSER-5-CFGLOG_LOGGEDCMD)
vendor_event_description interface GigabitEthernet0/0 keyword The command text that was entered and logged (PARSER-5-CFGLOG_LOGGEDCMD)
event_outcome success keyword The normalized event outcome (SSH-5-SSH2_SESSION: success; SNMP-3-AUTH_FAILURE: failure)
vendor_event_outcome Succeeded keyword The raw outcome string from the log

Cisco IOS Spotlight

The Cisco IOS Spotlight offers an overview dashboard with three tabs: Overview, Network, and Authentication.

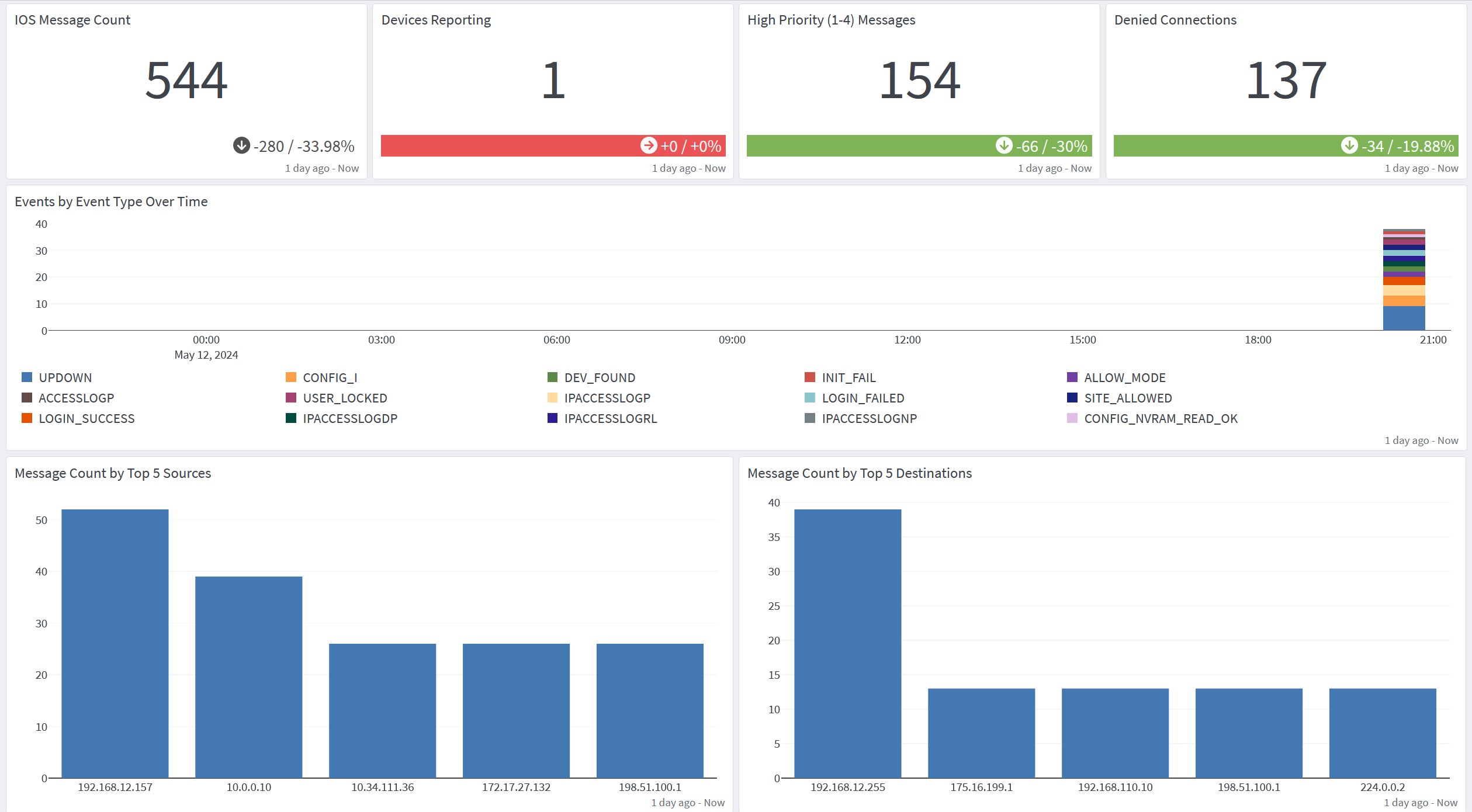

Overview

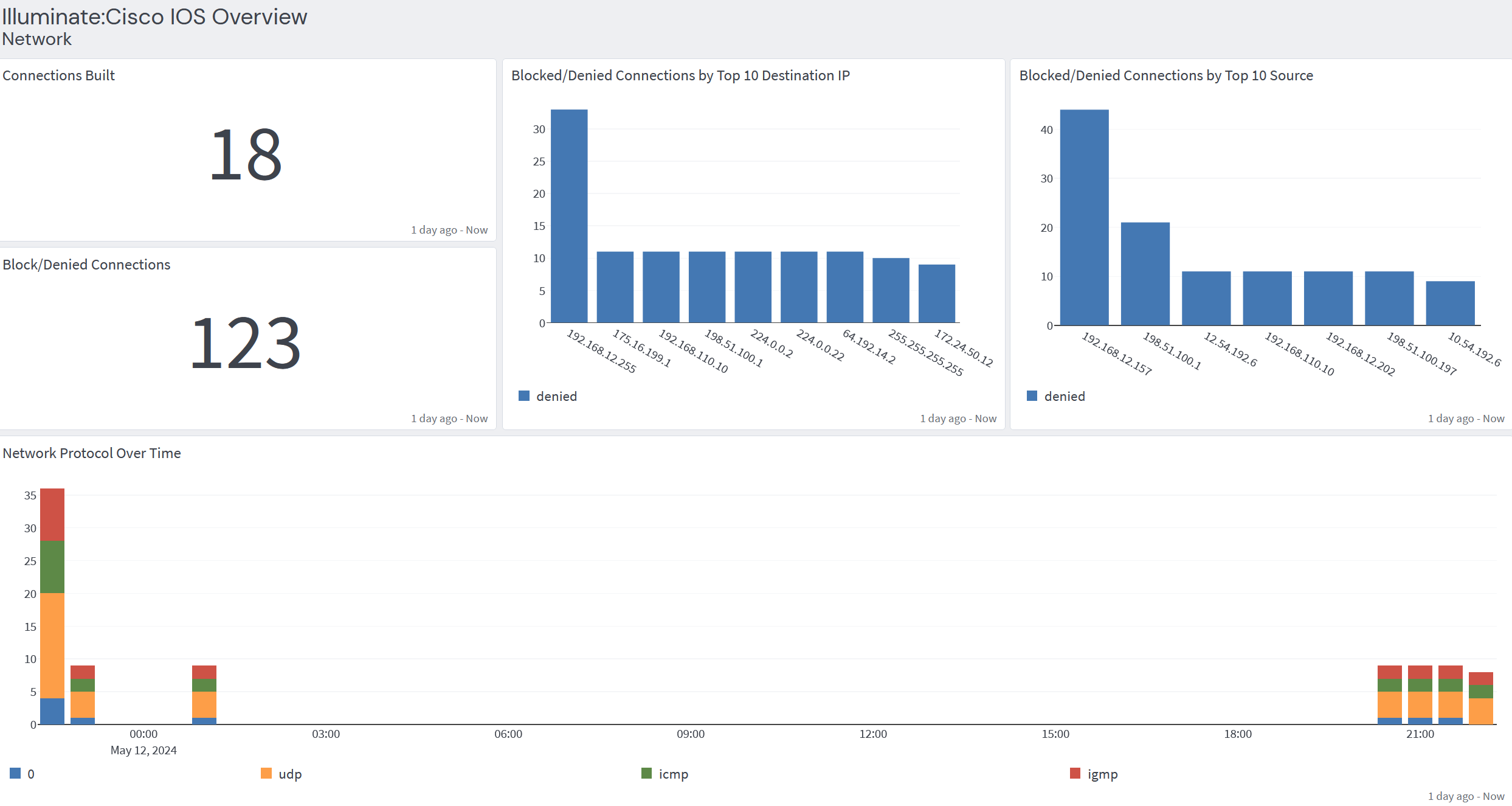

Network

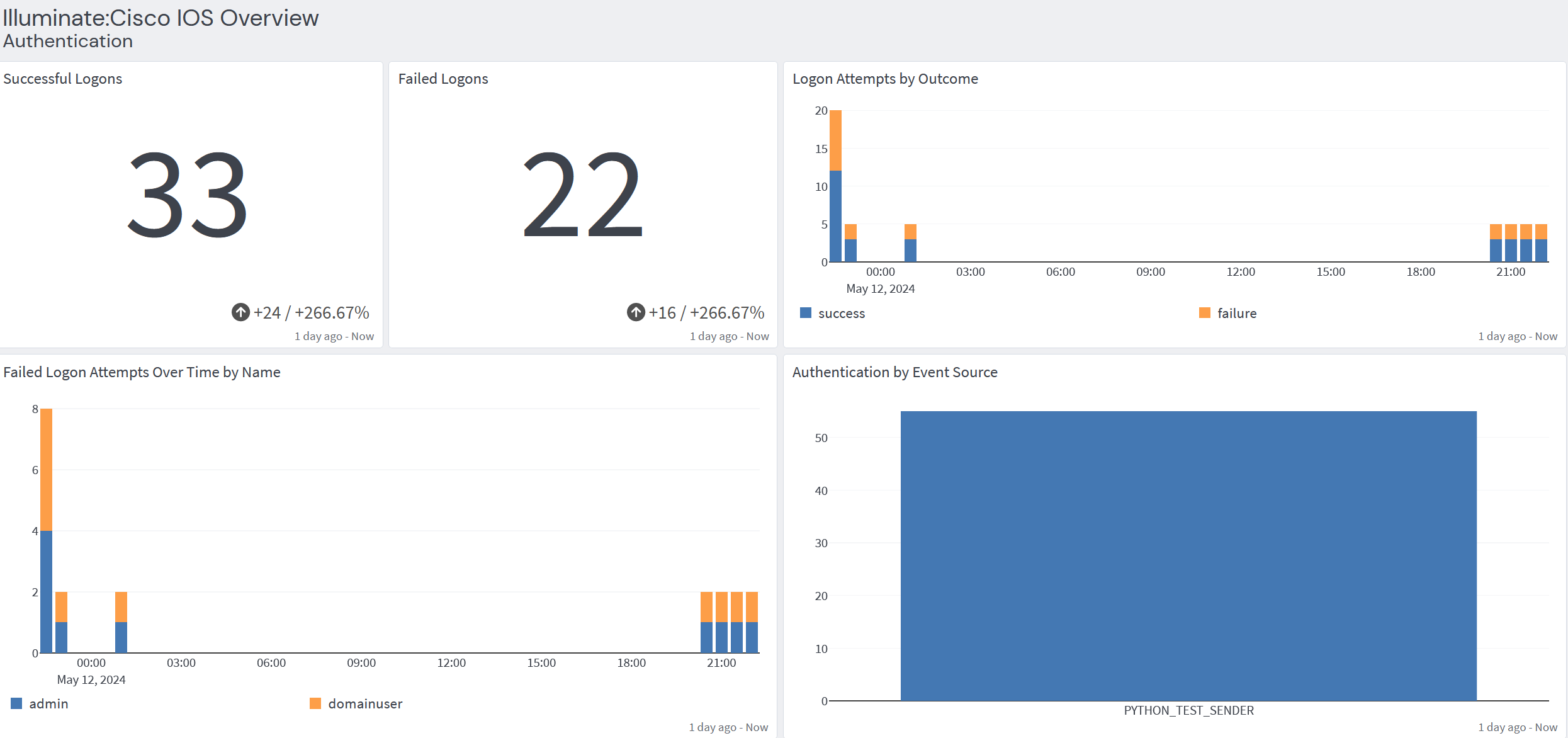

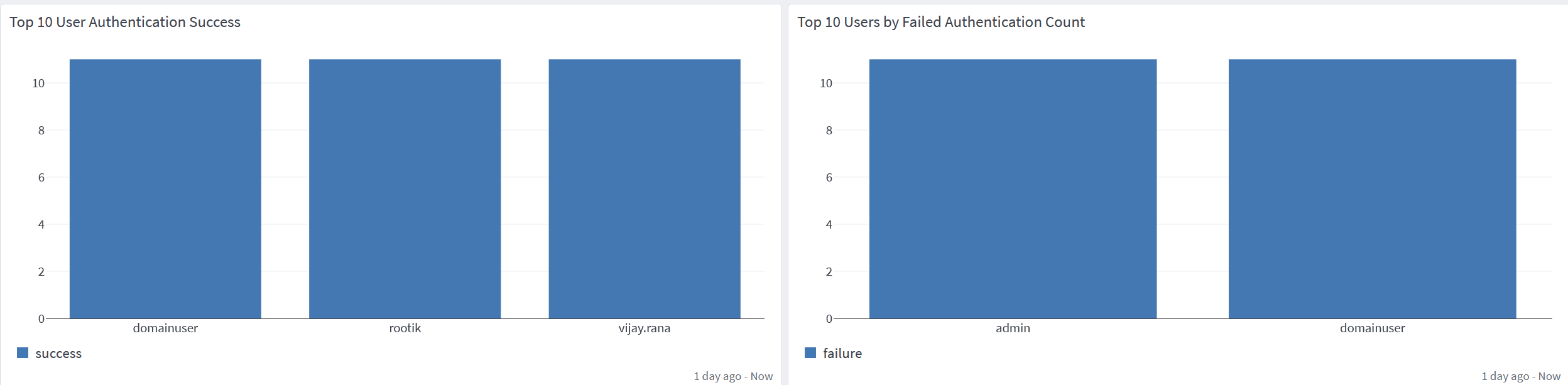

Authentication
