Apache Tomcat Content Pack

The following content pack is available for use with a Graylog Illuminate license and Graylog Enterprise or Graylog Security. Contact sales to learn more about obtaining Illuminate.

Apache Tomcat is an open-source Java servlet container developed by the Apache Software Foundation. This pack parses both Apache Tomcat access logs and Catalina server logs shipped via Filebeat with Graylog Sidecar.

Supported Version(s)

Apache Tomcat 11.0.5

Requirements

Log delivery via Filebeat with Graylog Sidecar.
Pack supports Ubuntu and Linux versions with the same path and file structure.
Only the standard Tomcat log folder for Ubuntu is supported.

Stream Configuration

This technology pack includes 1 stream:

"Illuminate:Apache Tomcat Device Messages"

Hint: If this stream does not exist prior to the activation of this pack then it will be created and configured to route messages to this stream and the associated index set. There should not be any stream rules configured for this stream.

Index Set Configuration

This technology pack includes 1 index set definition:

"Apache Tomcat Logs"

Hint: If this index set is already defined, then nothing will be changed. If this index set does not exist, then it will be created with retention settings of a daily rotation and 90 days of retention. These settings can be adjusted as required after installation.

Log Format Example

Access Logs

34.20.30.15 - - [28/Mar/2025:23:34:30 +0000] "PUT /stefan.session HTTP/1.1" 201 - 127.0.0.1 - - [26/Mar/2025:15:45:02 +0000] "GET /index.jsp HTTP/1.1" 200 11235 11.20.29.124 - admin [02/Mar/2023:18:58:17 +0530] "POST /host-manager/images/asf-logo.svg HTTP/1.1" 200 20486 X 400 "http://localhost:8080/host-manager/html" "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/109.0.0.0 Safari/537.36" X-Forwarded-For="127.0.0.1"

Catalina Logs

26-Mar-2025 15:27:08.188 INFO [main] org.apache.catalina.core.StandardService.startInternal Starting service [Catalina] 26-Mar-2025 15:27:08.205 INFO [main] org.apache.catalina.core.StandardEngine.startInternal Starting Servlet engine: [Apache Tomcat/11.0.5] 26-Mar-2025 15:27:08.290 INFO [main] org.apache.catalina.startup.HostConfig.deployDirectory Deployment of web application directory [/opt/tomcat/webapps/ROOT] has finished in [82] ms 26-Mar-2025 15:27:08.312 INFO [main] org.apache.coyote.AbstractProtocol.start Starting ProtocolHandler ["http-nio-8080"] 26-Mar-2025 15:30:44.512 INFO [main] org.apache.catalina.core.StandardService.stopInternal Stopping service [Catalina] 26-Mar-2025 15:30:44.521 INFO [main] org.apache.coyote.AbstractProtocol.stop Stopping ProtocolHandler ["http-nio-8080"] 26-Mar-2025 15:27:10.290 WARNING [Catalina-utility-2] org.apache.catalina.startup.HostConfig.deployDirectory Failed to deploy web application directory [/opt/tomcat/webapps/broken]

What is Provided

Parsing rules to extract Apache Tomcat access logs and Catalina server logs into Graylog schema-compatible fields.
Access log events receive GIM code 180200 (http.communication).
Catalina service start events receive GIM code 210000 (service started).
Catalina service stop events receive GIM code 210100 (service stopped).

GIM Categorization

GIM event type code assignments for Apache Tomcat log events:

Log Type	GIM Event Type Code	GIM Event Type
Access log (all HTTP requests)	180200	http communication
Catalina log - service/ProtocolHandler start (Starting)	210000	service started
Catalina log - service/ProtocolHandler stop (Stopping)	210100	service stopped

Field Normalization

Normalized Fields

Access Log Field List ▼

Field Name	Description
gim_event_type_code	GIM event type code. Set to 180200 (http communication) for all access log events.
http_referrer	The referrer URL sent by the client (the page that linked to this request), when present.
http_request_method	The HTTP method used for the request (for example: GET, POST, PUT).
http_request_path	The path requested (for example: /index.jsp or /host-manager/html).
http_response_code	The HTTP status code the server returned (for example: 200, 404, 500).
http_timestamp	Raw timestamp from the access log (for example: 26/Mar/2025:15:45:02 +0000).
http_user_agent	The client User-Agent string, when present.
http_version	The HTTP version used in the request (for example: 1.1).
http_xff	The X-Forwarded-For header value, when present.
ident	Ident value from the access log (usually -).
network_bytes	Number of bytes sent in the response body (absent when -).
network_protocol	Set to http for all access log events.
source_hostname	Client hostname, when the log records a name instead of an IP address.
source_ip	Client IP address.
user_name	Authenticated username for the request, when present.
vendor_connection_status	Connection status flag from the extended log format, when present.
vendor_response_time_ms	Server response time in milliseconds, when present in the extended log format.

Normalized Fields

Catalina Log Field List ▼

Field Name	Description
event_created	Normalized event timestamp parsed from the Catalina log timestamp (for example: 2025-03-26T15:27:08.000Z).
event_severity	Normalized severity string (for example: informational, medium, critical).
event_severity_level	Numeric severity level: 1 (informational), 3 (medium), 5 (critical).
gim_event_type_code	GIM event type code. Set to 210000 (service started) or 210100 (service stopped) for main module service/ProtocolHandler events.
service_name	Name of the service or ProtocolHandler extracted from the log (for example: Catalina, http-nio-8080).
vendor_catalina_module	Thread name or module from the bracketed field in the Catalina log (for example: main, Catalina-utility-2).
vendor_class	Fully qualified Java class name that produced the log entry.
vendor_component	Component type extracted from main module events: service or ProtocolHandler.
vendor_event_action	Action word from main module events: Starting or Stopping.
vendor_event_severity	Raw severity level as logged by Tomcat (for example: INFO, WARNING, SEVERE).

Log Collection

Input via Filebeat together with Graylog Sidecar

Please use the official Graylog Sidecar documentation to configure your Graylog server and your client(s).

Create an input and an API key and set up Graylog Sidecar.
Add your client(s), e.g. web server.

Hint: It is possible to run the Apache Tomcat server and Graylog on the same machine.

Graylog Server Settings

Create a global Beats input in Graylog.
Create a Graylog REST API access token and save it.
Create a (Linux) filebeat configuration under Sidecar > Configuration with a 'Filebeat on Linux' collector.

Configure the file and add:

The correct IP (Graylog server IP) under hosts.
The log source configured to the desired value and a field event_source_product with the value apache_tomcat.

Copy

filebeat.inputs:
                        - input_type: log
                        paths:
                        - /opt/tomcat/updated/logs/*
                        type: filestream
                        fields_under_root: true
                        fields:
                    event_source_product: apache_tomcat

This setting will pull all logs in the /opt/tomcat/updated/logs/* folder. If needed, adjust the path to match your Tomcat installation.
Finally, save the configuration to complete setup.

Warning: There must be two spaces in front of event_source_product and - /opt/tomcat/... .

Configure a Client with Filebeat and Graylog Sidecar

Install Sidecar on the remote machine.

Copy

wget
                        https://packages.graylog2.org/repo/packages/graylog-sidecar-repository_1-5_all.deb
                        sudo dpkg -i graylog-sidecar-repository_1-5_all.deb
                    sudo apt-get update && sudo apt-get install graylog-sidecar

Edit the /etc/graylog/sidecar/sidecar.yml file and configure:

server_url GraylogServerIP
server_api_token: Your API token

Copy

sudo gedit /etc/graylog/sidecar/sidecar.yml
                        server_url: "http://<GRAYLOG_SERVER_IP>:9000/api/"
                    server_api_token: "<YOUR_API_TOKEN>"

Install, enable, and verify the Sidecar service.

Copy

sudo graylog-sidecar -service install
                        sudo systemctl enable graylog-sidecar
                        sudo systemctl start graylog-sidecar
                    sudo systemctl status graylog-sidecar

Install filebeats according to the documentation. Or, here is the download link for the OSS version.
1. If you install it manually, install it again under /etc/filebeat.
2. If you install it via apt-get, then it is in the correct folder.

Example commands for Ubuntu:

Copy

wget -qO - https://artifacts.elastic.co/GPG-KEY-elasticsearch | sudo apt-key
                        add -
                        sudo apt-get install apt-transport-https
                        echo "deb https://artifacts.elastic.co/packages/oss-8.x/apt stable main" | sudo tee -a
                        /etc/apt/sources.list.d/elastic-8.x.list
                        sudo apt-get update && sudo apt-get install filebeat
                        sudo systemctl enable filebeat
                        sudo systemctl start filebeat
                    sudo systemctl status filebeat

(Optional) Edit the filebeat.yml file as needed. You do this via the Sidecar configuration in the Graylog interface.
Start the daemon.
If there is a permission issue, you can resolve with:
Copy
```
sudo chown root filebeat.yml
```
In Graylog, assign a configuration to your machine

Warning: This pack was tested on Ubuntu and may not work as designed with other Linux-based systems due to different path and file names.

Limitations

This pack was tested on Ubuntu and may not work as designed with other Linux-based systems due to different path and file names. Error logs are not parsed.

Apache Tomcat Content Pack

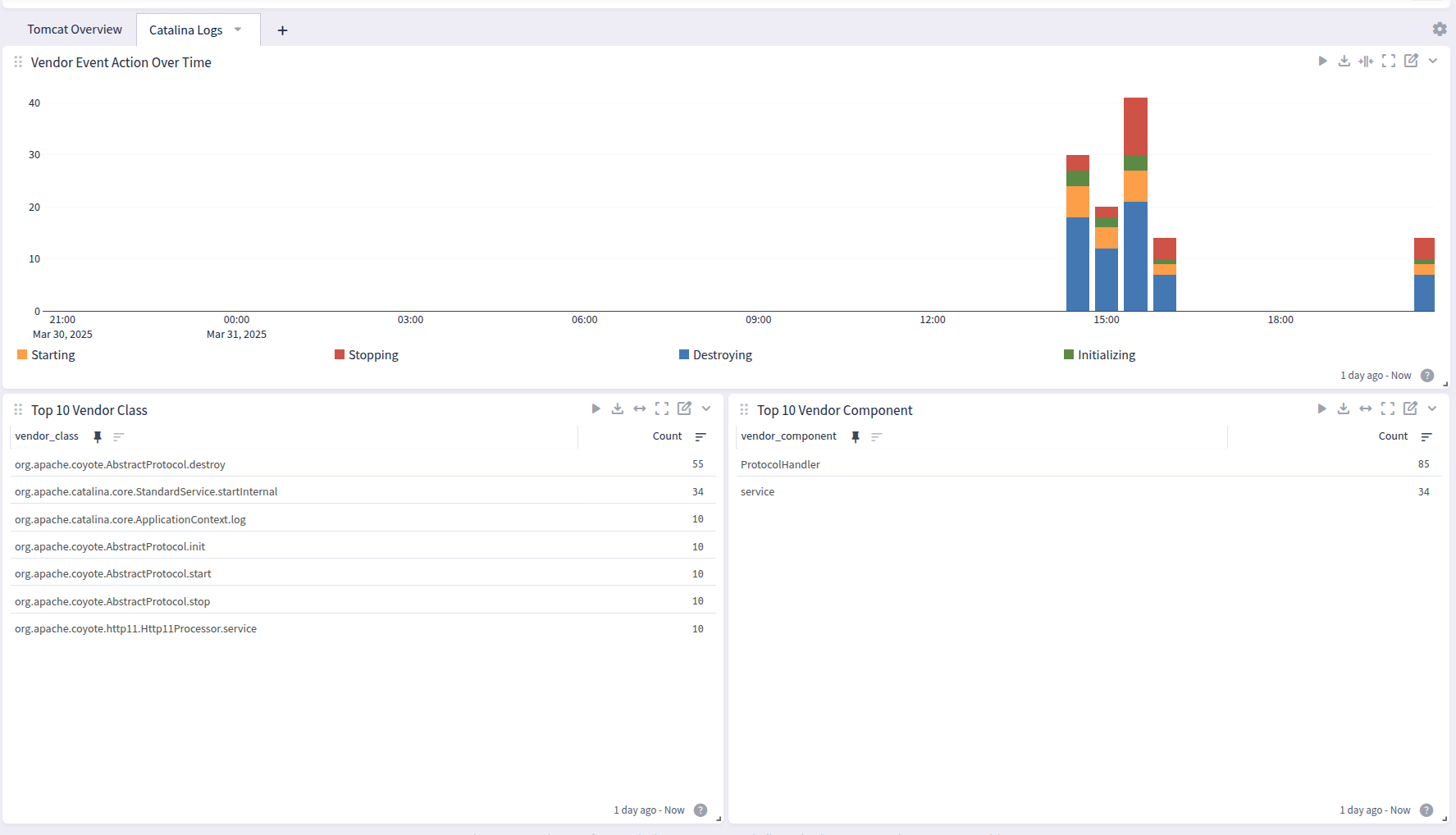

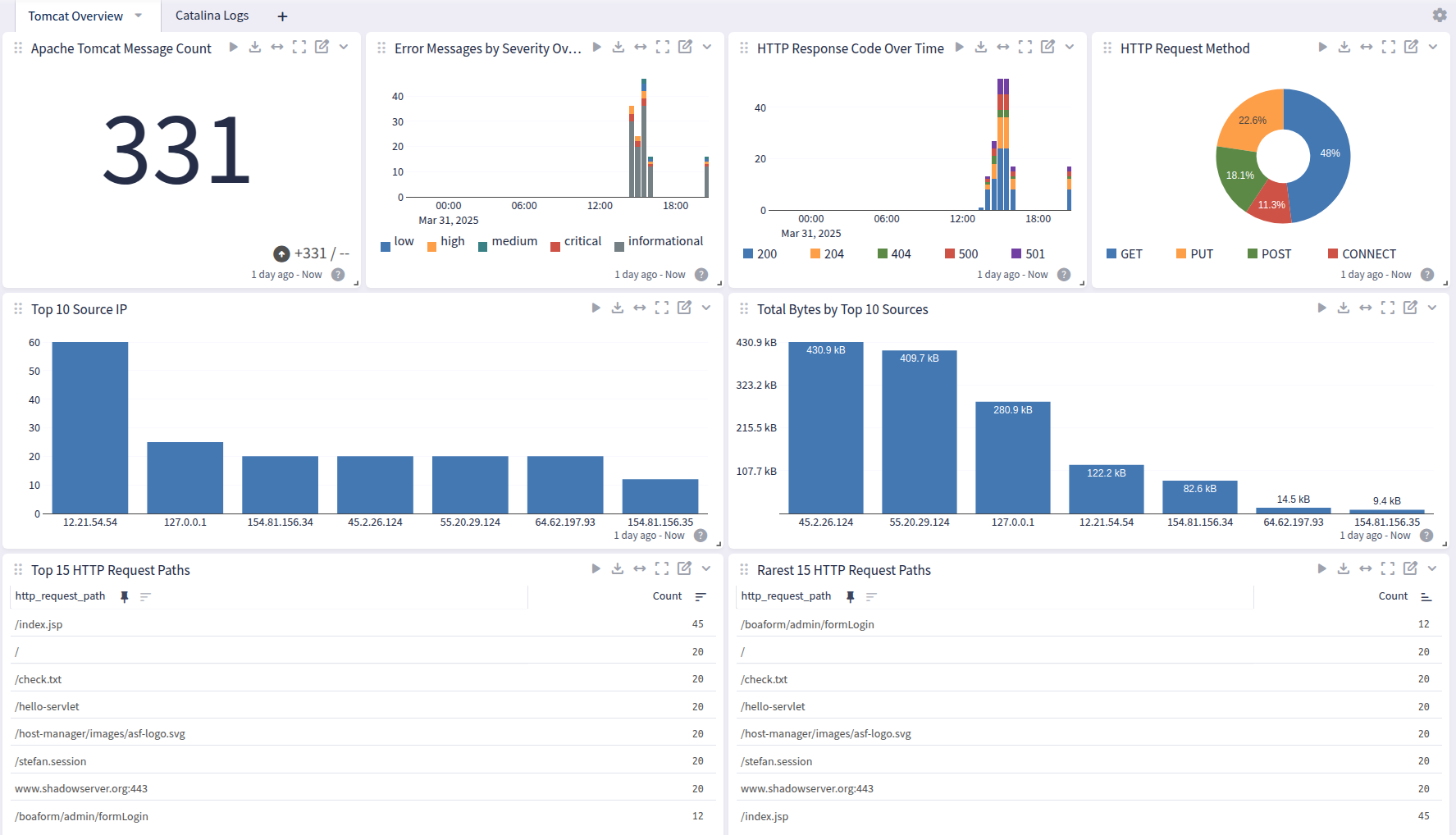

Apache Tomcat offers a dashboard with 2 tabs: Overview and Catalina:
